RT8511A 是可以驅動多達10只串聯連接的 WLED 的驅動 IC , 內部包含一個集成了 43V/1.2A 功率開關的電流模式 Boost 轉換器，工作頻率為固定的 1MHz，可以使用在 2.7V~24V 輸入電壓範圍內。</br>其輸出電流可以通過一個外部電阻進行設定，回饋電壓被調整至 200mV （典型值）。在操作期間，LED 電流可由一個 PWM 輸入信號進行控制，該信號的責任週期決定了回饋系統的參考電壓的大小。</br>為了實現亮度調整， RT8511A 能夠實現 LED 電流的穩定控制，因而在輸出電容上不會出現音訊雜訊。RT8511A 有一個可程式設計的過壓保護端子，用於避免在 LED 開路狀態下輸出電壓超過最大容許值。 RT8511A 可以 WDFN-8L 2x2 和 WDFN-8L 3x3 封裝形式供貨。

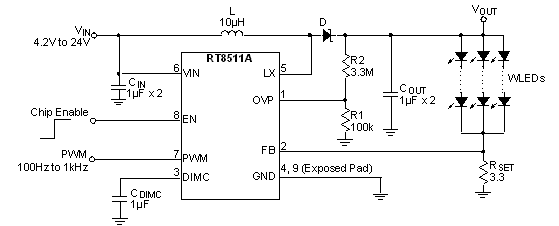

RT8511A 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>寬輸入電壓範圍：2.7V~24V </li><li>高輸出電壓：最高 43V </li><li>直接 PWM 調光控制，信號頻率範圍：100Hz~100kHz </li><li>內建軟起動和補償 </li><li>200mV 參考電壓 </li><li>內置濾波器的 PWM 調光 </li><li>可程式設計過壓保護 </li><li>過溫保護 </li><li>過流保護 </li><li>薄型8引腳 2x2 和 3x3 WDFN 封裝 </li><li>符合 RoHS 規範，不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

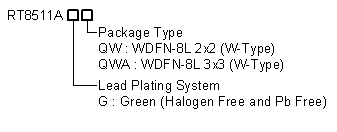

RT8511A 訂購資訊
