RT8511B是可驅動多達10只串聯的 WLED 的驅動器，由集成了43V/2.2A功率開關的電流模式 Boost 轉換器構成，工作頻率為固定的500kHz，工作電壓範圍為2.7V~24V，其輸出給LED的電流可由一隻電阻進行設定，回饋電壓為 200mV (典型值)。在其工作期間，LED的電流可經由 PWM 進行控制，其責任週期決定了參考電壓的值。為了進行調光，RT8511B可維持對 LED電流的穩定控制，不會在輸出電容上生成音訊雜訊。它還具有可程式設計的過壓保護引腳，可防止在LED開路期間的輸出電壓超過其絕對最大承受能力。RT8511B的封裝為WDFN-8L 2x2。

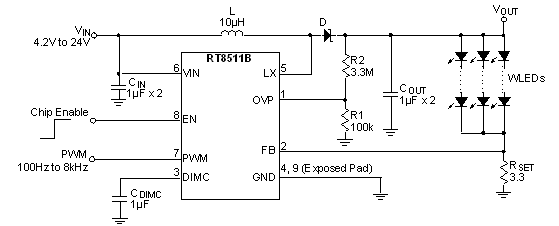

RT8511B 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>寬輸入電壓範圍：2.7V~24V </li><li>輸出電壓可高達 43V </li><li>PWM 調光控制信號的頻率範圍為 100Hz~8kHz </li><li>軟啟動和補償電路全部內建 </li><li>200mV 參考電壓 </li><li>有內部濾波器對 PWM 調光信號進行處理 </li><li>可程式設計過壓保護 </li><li>有過溫保護 </li><li>有電流限制保護 </li><li>8引腳 WDFN 封裝 </li><li>符合 RoHS 規範，不含鹵素 </li></ul></div>
