RT8532 是高效率的白光 LED 驅動器，設計用於驅動作為 LCD 屏光源的 LED 陣列。集成了功率開關的電流模式 Boost 轉換器可驅動6串並聯連接的 LED 串，每串可有多達10只 LED 連接在一起。每個內置電流源支持最大 ±2% 的電流誤差，確保每串 LED 都有優異的亮度一致性。為了提供足夠的操作餘量給每個電流源， Boost 控制器對每個回饋端子進行監控並調節至最優化之輸出電壓以獲取最好之效率。 RT8532 可以 2.5V~24V 之寬闊的輸入電壓範圍輸出 5mA~50mA 可調之電流，內部 200mΩ、 43V 功率開關以電流模式控制方式提供逐週期過流保護，還集成了 PWM 和模擬調光功能以取得精確的 LED 電流控制。PWM 調光信號的頻率範圍在 100Hz~20kHz 之間，調光時不會在 LED 中出現衝擊電流。RT8532 的封裝式 WQFN-20L 3x3。

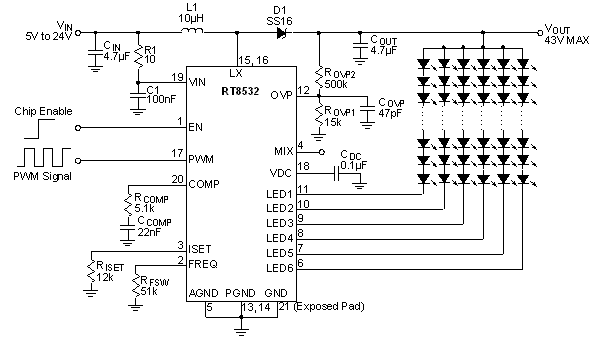

RT8532 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>寬輸入電壓範圍： 2.5V~24V </li><li>高輸出電壓：V<sub>OUT</sub> 高達 43V </li><li>可程式設計電流範圍：5mA~50mA ；匹配誤差：2% </li><li>通道電流調整精度：±3% </li><li>調光控制 </li><li>直接 PWM 調光頻率高達 20kHz，最小導通時間為500ns </li><li>PWM 轉“類比+PWM”混合式調光，信號頻率可高達 20kHz，最高解析度可達9位 </li><li>無需外部電容，內建軟起動避免衝擊電流 </li><li>關機模式下斷開 LED 連接 </li><li>保護 </li><li>LED 串開路保護 </li><li>電流限制保護 </li><li>可程式設計過壓保護 </li><li>過溫保護 </li><li>20引腳 WQFN 封裝 </li><li>符合 RoHS 規範，不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

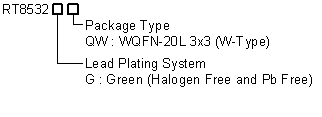

RT8532 訂購資訊
