RT8565 是能驅動6只 LED 的高效率 LED 驅動器，它集成了 26V/0.9A 的功率開關和蕭基二極體，是固定工作頻率為 600kHz 的電流模式 Boost 轉換器，輸入電壓範圍為 2.8V~4.5V 。驅動 LED 的電流可用一隻外部電阻進行設定，回饋電壓設定在 200mV 。在工作期間，一個內置的 6位DAC 對 LED 亮度進行控制，用戶可以很容易地通過 EN 端子對 LED 電流進行調節。在進行電流調節期間， RT8565 不會讓電流發生突然的變化，因而不會在輸出電容上出現音訊雜訊。RT8565 的內部還有過壓保護設定來預防輸出電壓超過器件的額定值，這是 LED 處於開路狀態時的最大風險。RT8565 的封裝類型是小型的 WQFN-8L 1.6x1.6 。

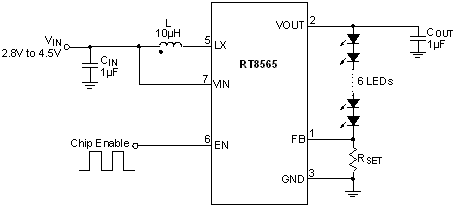

RT8565 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>內置蕭基二極體 </li><li>內置軟起動和補償電路 </li><li>64級脈衝調光方式 </li><li>LED 開路保護 </li><li>內部設定過壓保護點 </li><li>過溫保護 </li><li>過電流保護 </li><li>符合 RoHS 規範，不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

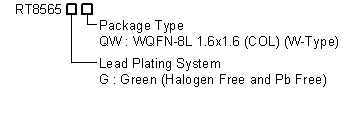

RT8565 訂購資訊
