RT8567 是一款高效率的白光 LED 驅動器，設計用於驅動一個 LED 陣列作為 LCD 屏的背光源。它包含一個電流模式 Boost 轉換器，用於驅動多達6個並聯連接的 LED 串，每串 LED 可以是多達12只 LED 的串聯，與每串 LED 連接的電流源的吸入电流匹配誤差在最大 ±2% 以內，確保各 LED 串之間的亮度一致性。為了給電流源吸入电流的操作預留足夠的空間，Boost 控制器對各個回饋引腳中的最低電壓進行監測並進行調節，同時確保得到一個最優的轉換效率。RT8567 的輸入電壓範圍寬達 2.7V~24V ，能夠輸出可調的 5mA~40mA 的 LED 電流，內部 250mΩ 、43V 的功率開關以電流控制模式提供逐週期過流保護。 RT8567 還集成了 PWM 調光功能以獲得精確的 LED 電流控制，輸入的 PWM 調光信號頻率可在 200Hz~25kHz 之間，調光過程不會造成任何流過 LED 或電感的衝擊電流。 RT8567 的開關切換工作頻率在 500kHz~2MHz 之間可調，這提供了效率和元件尺寸選擇上的靈活性。RT8567 可以很薄的 WQFN-20L 3x3 封裝形式供貨。

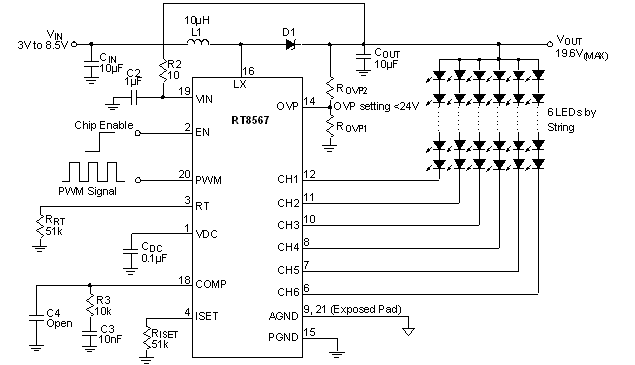

RT8567 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>寬輸入電壓範圍：2.7V~24V </li><li>高輸出電壓：最高 43V </li><li>通道電流調整精度：±3% ；一致性誤差：±2% </li><li>調光控制：外部 PWM 信號，頻率可高達 25kHz </li><li>可調開關切換工作頻率： 500kHZ~2MHz </li><li>內建軟起動 </li><li>保護 </li><li>LED 串開路檢測 </li><li>電流限制保護 </li><li>可程式設計過壓保護 </li><li>過溫保護 </li><li>20引腳 WQFN 封裝 </li><li>符合 RoHS 規範，不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

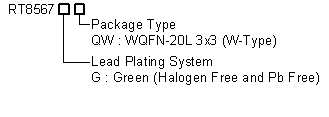

RT8567 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT8567
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT8567
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>UMPC and Notebook Computer Backlight </li><li>GPS<font size="4">,</font> Portable DVD Backlight </li></ul></div>
