RT8569 是一款用於白光 LED 的高效率驅動器。它專為採用 LED 陣列作為光源的 LCD 面板而設計。整合式電流模式升壓控制器可並聯驅動六串 LED，且每串最多支援 12 顆 WLED。內部電流汲入器支援最大 ±2% 電流不匹配，可在每串 LED 中實現優異的亮度均勻性。為提供電流汲入器運作所需的足夠餘裕，升壓控制器會監測回授腳位的最低電壓，並調節最佳化輸出電壓以提升電源效率。RT8569 具備 4.2V 至 24V 的寬輸入電壓範圍，並可提供 5mA 至 40mA 的可調式 LED 電流。內部 200mΩ、43V 功率開關搭配電流模式控制，可提供逐週期過電流保護。RT8569 亦整合 PWM 調光功能，可精準控制 LED 電流。輸入 PWM 調光頻率可在 200Hz 至 25kHz 範圍內運作，且不會在 LED 電流或電感電流中產生任何突入電流。RT8569 的切換頻率亦可在 500kHz 至 2MHz 之間調整，可在效率與元件尺寸之間提供靈活性。RT8569 採用薄型 WQFN-20L 4x4 封裝。

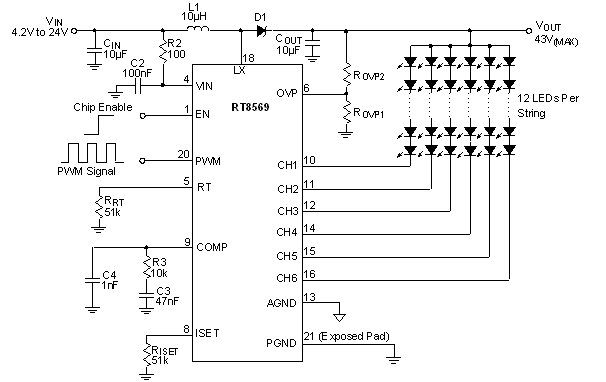

RT8569 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>Wide Input Voltage : 4.2V to 24V </li><li>High Output Voltage : Up to 43V </li><li>Programmable Channel Current : 5mA to 40mA </li><li>Channel Current Regulation with Accuracy ±3% and Matching ±2% </li><li>Dimming Controls : External PWM Input Up to 25 kHz </li><li>Adjustable Switching Frequency : 500kHz to 2MHz </li><li>Build-In Soft-Start </li><li>Protections <ul class="lv2"> <li></li><li>LED Strings Open Detection </li><li>Current Limit Protection </li><li>Programmable Over Voltage Protection </li><li>Over Temperature Protection </li></ul> </li><li>20-Lead WQFN Package </li><li>RoHS Compliant and Halogen Free </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

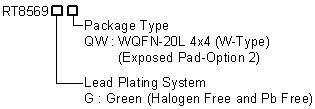

RT8569 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT8569
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT8569
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>UMPC and Notebook Computer Backlight </li><li>GPS, Portable DVD Backlight </li></ul></div>
