RT8800A是一通用型多相同步降壓轉換器，適合高功率密度應用，可在自動的錯相設定中執行2或3同步降壓轉換階段。此多相架構讓供電應用在高輸出電流中，可維持低功耗和輸入、輸出電容的低應力。輸出電壓透過PI接腳的外部參考電壓精確調節，當配合DAC發生器RT9401A/B，即可提供Intel<SUP>®</SUP> VRD10.x 或AMD<SUP>®</SUP> K8標準輸出電壓。RT8800A採用創新的時分 DCR 電流檢測技術實施電流平衡操作、降壓調整和過流保護，並用檢測電流的通用GM放大器消除偏移誤差及GM間的線性不一致性。由於現代的主機板普遍使用了低於毫歐姆級的電感，小的偏移和線性不一致性即可導致可觀的相間電流不平衡，這讓時分DCR技術更加重要，確保大規模量產中的電流平衡效果。RT8800A 的設計中還包含了多種其它特性，如過壓保護、欠壓保護和內部軟起動等。其封裝為 VQFN-16L 3x3。

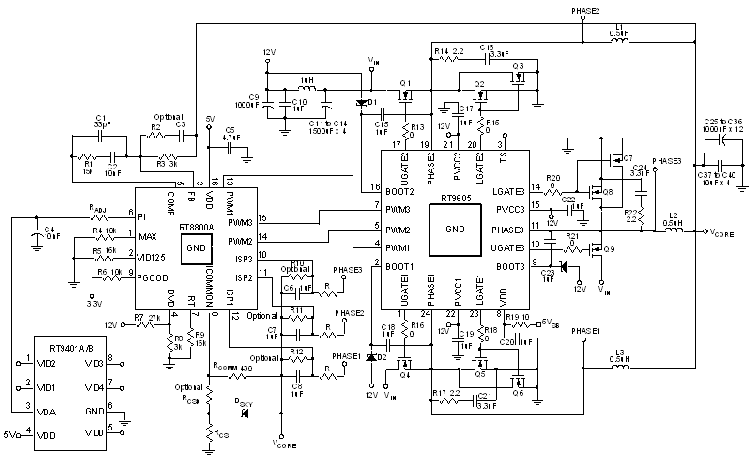

RT8800A 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>5V 供電 </li><li>可進行自動相數選擇的2/3相電源轉換器 </li><li>以外部參考電壓調節的輸出電壓 </li><li>精確的內核電壓調整 </li><li>使用 DCR 電流檢測技術進行功率級熱平衡 </li><li>極低成本；無損時分電流檢測技術 </li><li>內部軟啟動 </li><li>打嗝模式過流保護 </li><li>過壓保護 </li><li>可調工作頻率，每相典型頻率為 300kHz </li><li>電源良好指示 </li><li>16-引腳的 VQFN 封裝 </li><li>符合 RoHS 規範且完全無鉛 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

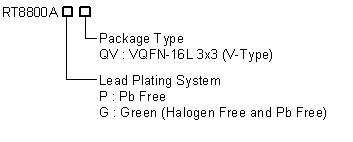

RT8800A 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT8800A
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT8800A
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>臺式電腦 CPU 內核電源 </li><li>低壓、高功率密度 DC/DC 轉換器 </li><li>電壓調節器模組 </li></ul></div>
