RT8809A/B 是集成了驅動器的雙相同步 Buck PWM 控制器，特別針對高性能圖形處理器和電腦應用進行了優化。它將 G-NAVP<sup>TM</sup> PWM 控制器、兩組包含自舉二極體的 12V MOSFET 驅動器、輸出電流監控和保護功能集成于單一的 WQFN-24L 4x4 封裝中，採用了 DCR 和 R<sub>DS(ON)</sub> 電流檢測技術。負載線電壓定位和過流保護功能即依靠連續的電感 DCR 電流檢測技術實現，而R<sub>DS(ON)</sub> 電流檢測技術則用於精確的通道間的電流平衡，通過這種不同方法的利用達到了性能最優化化的效果。它採用了1位元 VID 控制技術對回饋電壓進行調節並使之追蹤外部輸入的參考電壓，還具有工作頻率可調、外部補償和使能/關機等功能。

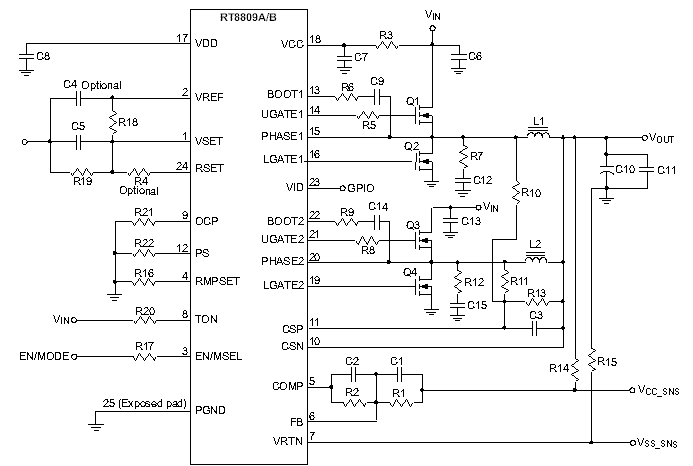

RT8809A/RT8809B 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>雙相 PWM 控制器 </li><li>內嵌兩組集成了自舉二極體的 MOSFET 驅動器 </li><li>Green-NAVP<sup>TM</sup> 控制技術 </li><li>閾值可調的動態自動相位控制技術 </li><li>交叉抖動掛起（CJS<sup>TM</sup>） </li><li>高精度遠端 GND 檢測 </li><li>輕載時自動進入二極體模擬模式或超聲模式 </li><li>用於電流平衡的無損的 R<sub>DS(ON)</sub> 電流檢測技術 </li><li>無損耗的 DCR 電流檢測技術用於 AVP 和 OCP </li><li>參考電壓輸出精度：1% </li><li>軟啟動（RISS）的外部參考輸入 </li><li>內嵌1位 VID　控制 </li><li>可調 OCP 閾值 </li><li>可調工作頻率 </li><li>跟蹤參考源的 UVP/OVP </li><li>貫通保護和無短脈衝技術 </li><li>符合 RoHS 規範，不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

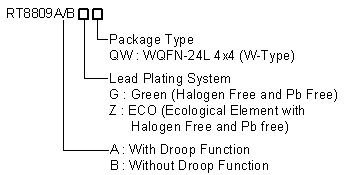

RT8809A/RT8809B 訂購資訊
