RT8810 是雙相同步 Buck 控制器，集成了包括字句二極體在內的具有高驅動能力的 MOSFET 驅動器，外部元件少，空間佔用少，可用於大電流的應用中，是一個緊湊、高效、安全而且成本低廉的解決方案。它可將回饋電壓精確調節至與內部 0.6V 參考電壓相同或是追蹤 0.4V~2.5V 的外部參考電壓，使用 MODE 引腳可控制其工作在單相或雙相模式下，使之非常適合於 PCI-Express 介面圖形卡之類的雙輸入場合。當它被設定在自動模式時，它可在輕載時以單相運行進行操作，因而可在全負載範圍內維持其高效率的運作。此外，它的門極驅動電壓是可調節的，這可使其效率得到最大化，性能得到最優化。它採用無損耗的 R<sub>DS(ON)</sub> 電流檢測技術進行電流平衡和過流保護，具有可調節的軟啟動、相數可調和過流門限可調等特性。

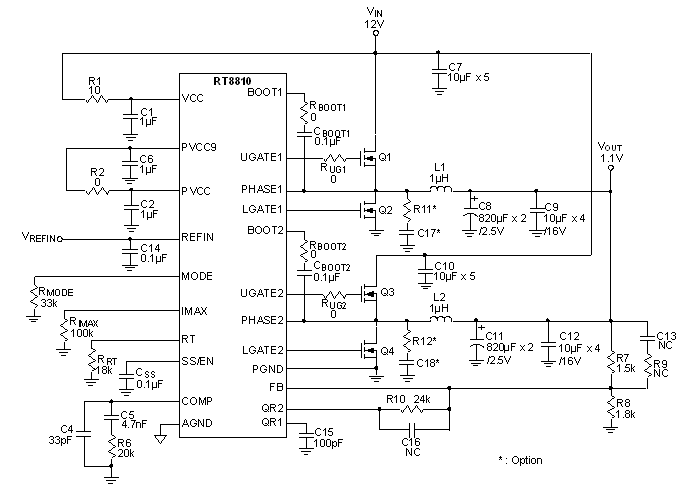

RT8810 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>4.5V~13.2V 工作電壓範圍 </li><li>支援手動/自動相數控制技術 </li><li>集成自舉二極體 </li><li>無損 R<sub>DS(ON)</sub> 電流檢測實現電流平衡 </li><li>100kHz~1MHz 可調工作頻率 </li><li>電容可調軟啟動 </li><li>支持 0~80% 的責任週期 </li><li>可選內部/外部參考電壓 V<sub>REF</sub> </li><li>電壓模式 PWM 控制技術，使用外部回饋補償 </li><li>相間交叉抖動掛起 (CJS<sup>TM</sup>) </li><li>可程式設計快速回應 </li><li>上下橋同時貫通保護 </li><li>支持電流報告 </li><li>16引腳和24引腳的 WQFN 封裝 </li><li>符合 RoHS 規範，不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

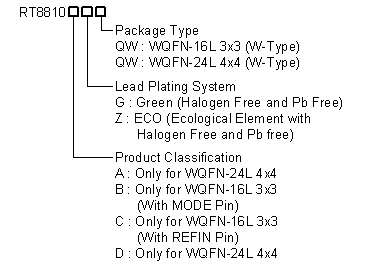

RT8810 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT8810
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT8810
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>GPU 內核電源 </li><li>臺式電腦記憶體 V<sub>TT</sub> 電源 </li><li>低壓、高達功率密度 DC/DC 轉換器 </li><li>電壓調節器模組 </li></ul></div>
