RT8816B 是採用 PWMVID 介面、針對高性能圖形處理器進行了優化、符合 nVidia OVR2 規格的以 2/1 相工作的同步 Buck 控制器，其控制架構為固定導通時間（Constant On Time, COT），集成了包括自舉二極體在內的兩組 MOSFET 驅動器，具有通道間電流平衡和包括過壓保護、欠壓保護、電流限制和過熱關機保護等在內的保護功能，使用了 WQFN-20L 3x3 封裝。它採用 R<sub>DS(ON)</sub> 電流檢測技術，通過持續的電感電流監測實施電流限制並實現精確的通道間電流平衡。</br>RT8816B 採用外部參考輸入和 PWMVID 輸出電壓動態控制技術使回饋電壓得到調節以跟隨外部參考輸入電壓的變化，其工作頻率可調，工作相數動態可控，內含軟啟動，具有 Power Good 指示和使能控制功能。

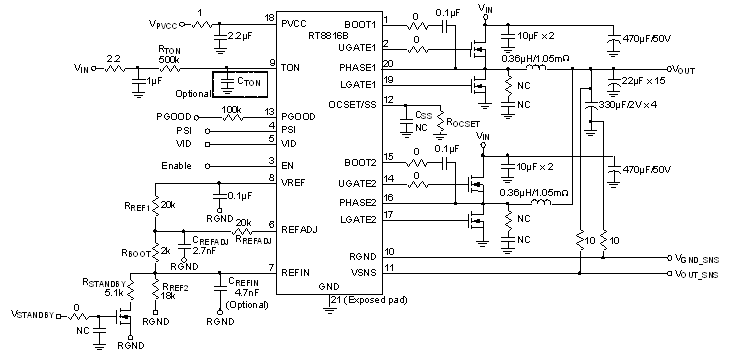

RT8816B 電路圖
