RT8867是整合了3組 MOSFET 驅動器的改進型4/3相同步 Buck 控制器，它整合了8位 DAC 以支援 Intel VR11.x 和 VR10.x CPU 的電源供應，使用了最先進的動態相位控制技術，可在 PS1/2/3 等引腳的控制下動態改變工作相數，可在很寬的負載範圍內獲得很高的效率。它使用了無損耗的 R<sub>DS(ON)</sub> 電流檢測技術進行電流平衡操作，其工作頻率可調，軟起動可調，具有短路保護、可調的過流保護、過壓保護、欠壓保護等功能，還有電源準備好、VR_HOT 和 <span class="overline">VR_SHDN</span>等指示信號輸出。<br>RT8867採用 WQFN-48L 6x6 的小型封裝。

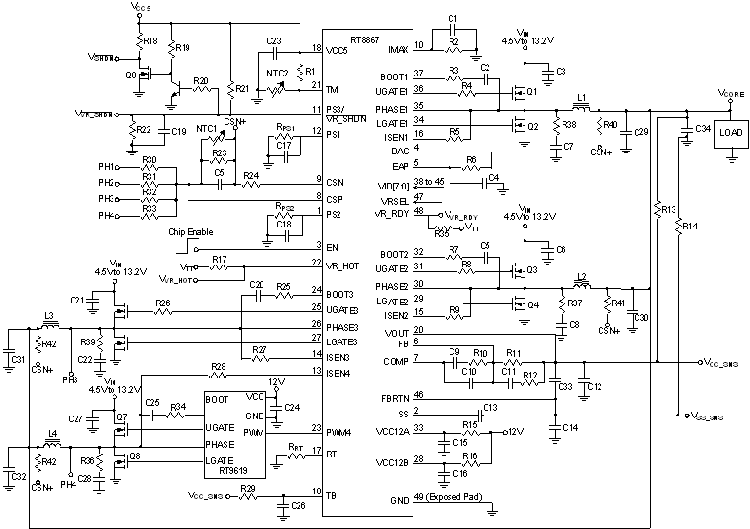

RT8867 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>12V 電源供應電壓 </li><li>4/3相電源轉換 </li><li>整合了3組 MOSFET 驅動器和自舉二極體 </li><li>具有動態相數控制能力 </li><li>使用8位 DAC 支援 Intel VR10.x/VR11.x CPU </li><li>使用無損耗的 R<sub>DS(ON)</sub> 電流檢測技術實現電流平衡 </li><li>可調工作頻率範圍：50kHz ~ 1MHz </li><li>可調過流保護 </li><li>可調軟起動 </li><li>具有 VR_RDY, VR_HOT 和 <span class="overline">VR_SHDN</span> 等指示信號輸出 </li><li>小型48引腳 WQFN 封裝 </li><li>符合 RoHS 規範，不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

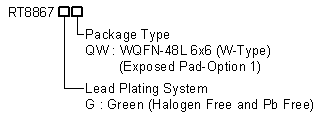

RT8867 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT8867
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT8867
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>臺式電腦CPU內核電源 </li><li>中/高端顯示卡 </li><li>低電壓、大電流DC/DC轉換器 </li></ul></div>
