RT8869A 是集成了兩組 MOSFET 驅動器的改進型 2/1 相同步 Buck 控制器，它集成了一個8位 DAC 以支持 Intel VR11.x CPU 的電源供應，採用了由 PS1 引腳控制的動態相數控制技術以便在寬廣的負載範圍內獲得高效率，使用無損耗的 R<sub>DS(ON)</sub> 電流檢測技術實施電流平衡操作。它的工作頻率是可調的，軟啟動也可調整，還有短路保護、可調過流保護、過壓保護、欠壓保護、電源狀態指示、VR_HOT 指示和 <span class="overline">VR_SHDN</span> 指示等功能。其封裝規格是 WQFN-40L 5x5 。

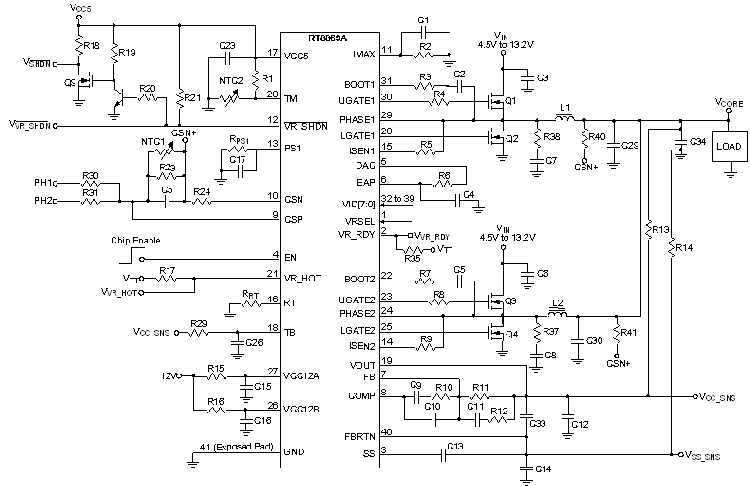

RT8869A 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>12V 電源供應電壓 </li><li>2/1 相電源轉換操作 </li><li>可進行動態相數控制 </li><li>8位 DAC 支持 Intel VR11.x CPU 應用 </li><li>無損 R<sub>DS(ON)</sub> 電流檢測技術支援電流平衡操作 </li><li>可調工作頻率範圍：50kHz~1MHz </li><li>可調過流保護 </li><li>可調軟啟動 </li><li>VR_RDY, VR_HOT 和 <span class="overline">VR_SHDN</span> 指示 </li><li>小型40引腳 WQFN 封裝 </li><li>符合 RoHS 規範，不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

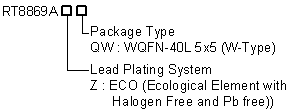

RT8869A 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT8869A
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT8869A
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>Desktop CPU Core Power </li><li>Middle/High End Graphic Cards </li><li>Low Voltage, High Current DC/ DC Converters </li></ul></div>
