RT9059 是一款高性能的正電壓輸出線性穩壓器，適用於最大負載電流達 3A 而輸入電壓又很低並且輸入、輸出壓差也極低的應用。 它在 VDD 電壓為 3V、可調輸出電壓最低達 0.8V 時的 VIN 輸入電壓最低可至 1V。由於 RT9059 擁有超低輸入、輸出壓差的特性，非常適合使用在輸出電壓非常接近輸入電壓的應用中。它還具有使能控制引腳，關機狀態下的電流消耗可達極低水準，幾乎沒有任何功率損耗。它在整個輸入、輸出和工作溫度範圍內都能提供卓越的電壓調節性能，其 Power Good 信號輸出端可在輸出電壓達到額定電壓的 90% 以上時發出輸出正常的信號。

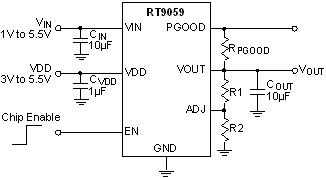

RT9059 電路圖
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>電流負載能力：3A </li><li>輸出電壓精度：1.5% </li><li>3A 負載時的輸入、輸出直通壓差典型值為 350mV </li><li>Power Good 指示 </li><li>關機時時輸出端主動放電 </li><li>電流限制保護 </li><li>過熱關機保護 </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

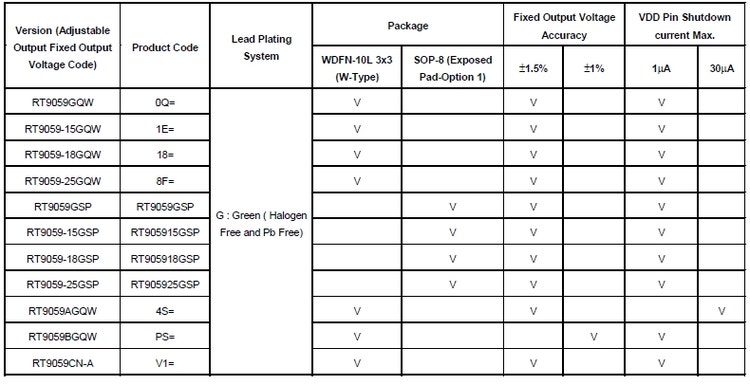

RT9059 訂購資訊
normal-table
card-list
products
productTable
evbImageSwitcher
normal-table
card-list
evb
evbTable
orderingDetail
technical-documents
RT9059
technicalDocumentMultipleTable
design-tools
RT9059
designToolMultipleTable
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>筆記型電腦 </li><li>電腦主機板 </li></ul></div>
