RT9101 是輸出功率為 2.65W 的高效D類音訊功率放大器，它集成了低阻抗的功率 MOSFET ，可通過外部輸入電阻進行增益設定，無需使用輸出濾波器，降低了外部元件數量、PCB 空間佔用和系統成本。</br>借助工作在 5V 供電下的能力，RT9101 可以 10% 的 THD+N 指標在 4Ω 的揚聲器負載上持續輸出平均 2.65W 的功率，如果功率降至 2W ，則 THD+N 指標可以降至 0.5% 。與典型的 AB 類放大器相比，RT9101 在驅動揚聲器上表現出更高的效率。當工作在 3.6V 電壓下時，用它驅動 8Ω 揚聲器輸出 400mW 功率的效率可以達到 88%。</br>它非常適合功率敏感的應用，例如行動電話和其它電池供電設備。它還具有快速建立工作狀態的能力，這對減小開關機過程中的音訊衝擊聲意義重大。另外，它還集成了過溫保護和過流保護電路。</br>RT9101 可以 WDFN-8L 3x3 和 WL-CSP-9B 1.45x1.45(BSC) 的超小型封裝供貨。

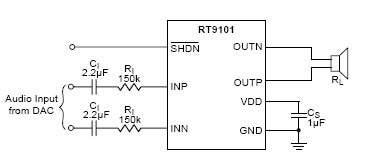

RT9101 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>寬工作電壓範圍：2.5V~5.5V </li><li>與 8Ω 揚聲器配合高效工作的能力 </li><li>400mW 時效率為88% </li><li>100mW 時效率為80% </li><li>很低的靜態電流和關機電流消耗 </li><li>優化的 PWM 輸出級，無需使用 LC 濾波器 </li><li>全差分設計降低了射頻整流，省卻了對旁路電容的需求 </li><li>內部生成 250kHz 開關切換頻率 </li><li>集成了音訊衝擊抑制電路 </li><li>符合 RoHS 規範，不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

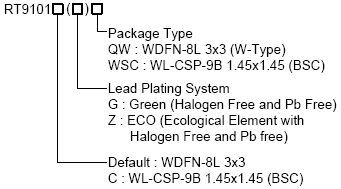

RT9101 訂購資訊
