RT9121 是採用 I<sup>2</sup>S 介面的高效身歷聲音訊功率放大器，推動 BTL 連接的 8Ω 揚聲器時能輸出最大 2x30W 的功率，電能轉化效率可達 94%，無需使用散熱元件，內含過熱保護、過流保護、過壓保護、直流和欠壓保護及故障報告功能。</br>RT9121 屬於 I<sup>2</sup>S 器件，通過接收外來時鐘驅動其工作。它可支援 Master 和 Slave 兩種模式，輸入信號的取樣速率範圍為 8kHz-192kHz，其內含資料通道完全可程式控制，最終將資料引導至揚聲器驅動電路。</br>RT9121 包含三段 DRC 和靈活的多段四邊濾波器，可消除暴烈聲，對輸出功率進行限制，實現揚聲器均衡。

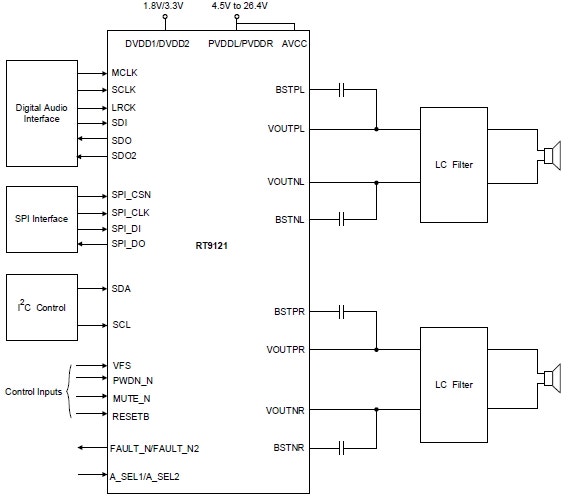

RT9121 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>電壓輸入範圍 <ul class="lv2"> <li></li><li>PVDD = 4.5V-26.4V </li><li>DVDD 與 I/O：1.8V 或 3.3V </li></ul> </li><li>支援眾多音訊格式 <ul class="lv2"> <li></li><li>解析度最高可達 32 位 </li><li>支援多達 32 位的 TDM 格式輸出 </li><li>信號取樣速率：8kHz-192kHz </li></ul> </li><li>卓越的音訊性能 <ul class="lv2"> <li></li><li>24V 供電、8Ω BTL 負載功率：2x30W </li><li>SNR：110dB </li><li>效率：94% </li></ul> </li><li>內建可程式控制 DSP <ul class="lv2"> <li></li><li>40 個可程式控制四邊濾波器作揚聲器均衡 </li><li>DRC 濾波器參數可調，支持多壓縮比 </li><li>可程式控制 256-tap FIR 濾波器 </li></ul> </li><li>卓越的自保護設計 <ul class="lv2"> <li></li><li>輸入欠壓閉鎖、過壓保護、過流保護、熱折返、過熱保護和直流保護 </li><li>內建直流阻斷濾波器 </li></ul> </li><li>無需外加濾波器 </li><li>內含 HiFi-3 DSP、160kB SRAM </li><li>PWM 頻率可調，最高達 1.5MHz </li><li>VQFN-48L 熱強化封裝 </li><li>符合 RoHS 規範，不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

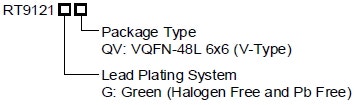

RT9121 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT9121
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT9121
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>液晶電視 </li><li>顯示器 </li><li>家用音響 </li><li>娛樂設備 </li><li>電子音樂設備 </li></ul></div>
