RT9198/A 是針對無線射頻應用的性能需求和空間考慮而設計的產品，具有極低的雜訊和靜態電流消耗。即使是工作在直通狀態下，其電流消耗也只有輕微的增加，可有效延長電池使用時間。它可與低 ESR 陶瓷電容配合穩定工作，對空間需求極低，這對掌上型無線應用至關重要。RT9198/A 在關機模式下僅消耗低於 0.01μA 的電流，啟動過程時長短於 50μs。它具有極低的電壓差、高輸出電壓精度、電流限制保護和高漣波抑制比，可以 SOT-23-3、SOT-23-5、TSOT-23-3、TSOT-23-5、SC-70-5、SC-82、MSOP-8 和 WDFN-6L 2x2 等封裝形式供貨，其輸出電壓範圍為 1.5V~5V，級差為 0.1V。

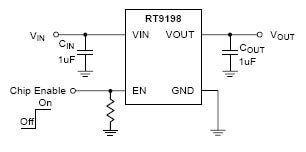

RT9198/RT9198A 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>低雜訊，適合射頻產品使用 </li><li>對輸入、輸出瞬變的快速回應 </li><li>快速啟動過程（典型值 50μs ） </li><li>關機模式下的電流消耗低於 0.01μA </li><li>低壓差：220mV@300mA </li><li>寬輸入電壓範圍： 2.5V~5.5V </li><li>TTL 邏輯相容的控制輸入 </li><li>低溫度係數 </li><li>電流限制保護 </li><li>熱關機保護 </li><li>僅需 1μF 輸出電容即可穩定工作 </li><li>高電源漣波抑制比 </li><li>客制化的電壓選項 </li><li>符合 RoHS 規範，不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

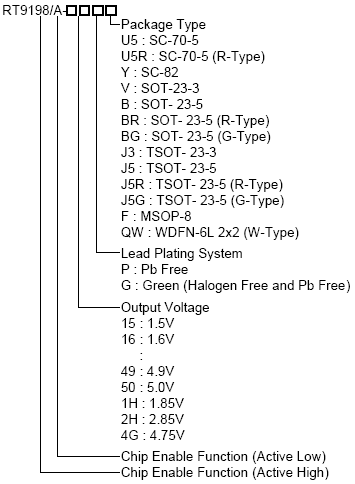

RT9198/RT9198A 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT9198/RT9198A
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT9198/RT9198A
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>CDMA/GSM Cellular Handsets </li><li>電池供電設備 </li><li>筆記型電腦 </li><li>Hand-Held Instruments </li><li>PCMCIA Cards </li><li>Portable Information Appliances </li></ul></div>
