RT9206為低單價，整合了PWM電壓模式的降壓型轉換器控制器、兩組高壓型線性控制器的多組整合型轉換器控制器，可直接驅動外部的N-MOSFET簡易的實現具高效率與低價位的電源解決方案。電壓模式的控制回路以及具備外部補償網路的固定頻率操作，在寬操作範圍內提供了更佳的穩定性。可調的操作頻率最高達600kHz可減少所需電感大小與PCB的設計面積。可適用於寬輸入電壓範圍(4.75V至 28V)與多組輸出的應用。線性控制器的特色為設計自由度高，輸出功率的大小可藉由所選擇的N-MOSFET 決定，輸出電壓可由外接的電阻分壓進行設計。0.8V的參考電壓可滿足大多數的設計應用。低電壓閂鎖功能可提供輸出有效的保護。RT9206提供完整的保護功能:緩啟動、過電流保護、過電壓與低電壓保護。可藉由所選擇的MOSFET以決定電流限制的大小。同步降壓型控制模式藉由開啟低端MOSFET以達到過電壓保護機制，防止在異常的過電壓產生時，毀壞終端裝置的情形發生。

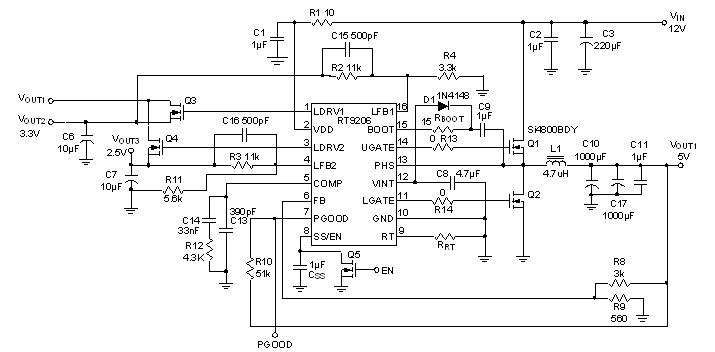

RT9206 電路圖
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>寬輸入範圍(4.75V 至 28V) </li><li>0.8V 內部參考電壓 </li><li>高效率的同步降壓型架構 </li><li>整合兩組高壓線性控制器 </li><li>低價位的N-MOSFET 設計 </li><li>責任週期 0% 至90%. </li><li>可調切換頻率200kHz至600kHz，預設為 200kHz </li><li>可藉由低端MOSFET R<sub>DS(ON)</sub> 感測OCP </li><li>電源良好信號指示 </li><li>符合RoHS規範與100%的引腳無鉛特性 </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

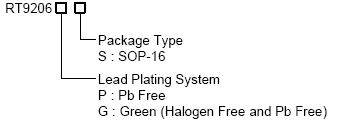

RT9206 訂購資訊
