RT9367C 是用於手機背光和攝像頭應用的集成化電源解決方案，其中集成了一個電荷泵 LED 驅動器和兩個低壓差線性穩壓器，通過將其 ENA 端拉低可使其進入關機狀態。RT9367C 的 LED 驅動部分由電荷泵和使電流一致的定電流源組成，可以驅動4只 LED ，每只 LED 的電流可達 25mA 。它通過採用 x1/x1.5/x2 等不同的電荷泵工作模式和低壓差電流源維持高 LED 驅動效率，用戶可通過 I<sup>2</sup>C 介面對內部的5位元 DAC 進行控制以實現32級電流調節，最終實現亮度控制。RT9367C 還包含了兩個低雜訊、低壓差的線性穩壓器，每個的輸出電流能力可達 300mA ，其輸出電壓可通過 I<sup>2</sup>C 介面進行設定，其電壓設定範圍為 1.1V~3.3V，輸出電壓精度可達3%。在 300mA 負載電流下，穩壓器的最小壓降可達 250mV 。這些穩壓器具有電流限制和輸出短路熱折回保護功能。

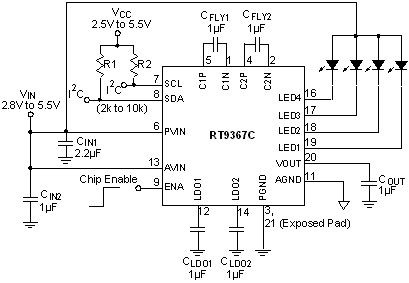

RT9367C 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>手機背光和攝像頭電源供應的集成化方案 </li><li>I<sup>2</sup>C 介面可程式設計的32級調光控制能力和獨立通道開/關能力 </li><li>過溫保護 </li><li>資料寄存器在加電期間復位 </li><li>關機期間電流消耗僅 1μA ，介面處於開放狀態 </li><li>電荷泵 LED 驅動器 </li><li>全鋰離子電池電壓範圍內的峰值效率可達93% </li><li>全鋰離子電池電壓範圍內的平均效率可達85% </li><li>可驅動多達4只白光 LED </li><li>各通道可輸出 25mA 電流，總電流達 100mA </li><li>60mV 定電流源壓差 </li><li>1%的電流精度 </li><li>0.7%的電流一致性 </li><li>電荷泵工作模式在 x1/x1.5/x2 之間自動轉換 </li><li>低輸入端雜訊和 EMI 問題 </li><li>5.5V 過壓保護 </li><li>開機、模式轉換衝擊保護 </li><li>1MHz 隨機頻率振盪器 </li><li>0.1μA 低關機電流 </li><li>雙路低壓差穩壓器 </li><li>寬工作電壓範圍 </li><li>低輸出雜訊 </li><li>無需使用雜訊旁路電容 </li><li>線路/負載瞬變時的快速回應能力 </li><li>溫度係數低 </li><li>兩路輸出能力均為 300mA </li><li>輸出電壓精度：3% </li><li>過流保護 </li><li>短路熱折回保護 </li><li>0.1μA 低關機電流 </li><li>符合 RoHS 規範，不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

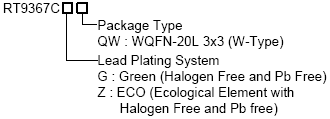

RT9367C 訂購資訊
