RT9426是自帶微處理器的鋰離子/鋰聚合物電池電量計，可提供單節電池的電量資訊，可安裝于電池包內或是系統側的主機板上，實現對內置式或可更換式電池的管理。</br>RT9426使用VGCS (Voltaic Gauge with Current Sensing) 演算法利用電池電壓和電池開路電壓之間的差異計算電池荷電狀態的增加或減少，並利用電流檢測資料對計算結果進行補償，最終給出準確的電池荷電資訊。</br>VGCS演算法得出的SOC資訊是平滑變化的，不存在時間累積誤差和電流檢測誤差，這與庫倫計數法相比是一個優勢，後者會因電流測量誤差和電池自放電而導致電池荷電資料的偏差。</br>RT9426通過中斷告警功能提供完整的電池狀態監控，它能在電池過壓/欠壓、充放電過程中的電池溫度過高向主處理器發出報警信號。在電池高倍率充電應用中，它能採用Kelvin連接法消除電壓測量中的IR壓差效應，優化充電特性，確保充電安全。更多有用的報警功能包括：SOC下限報警、SOC改變、電池存在狀態改變。

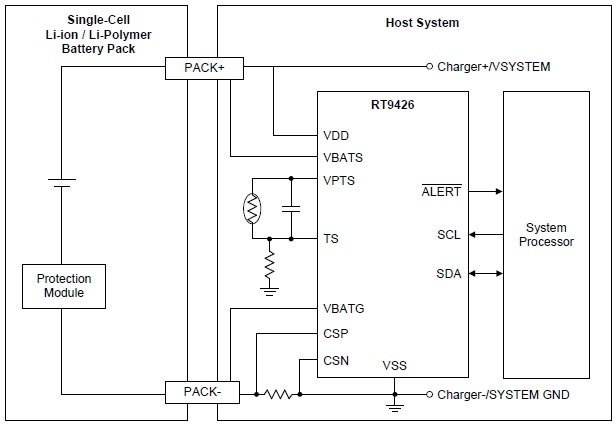

RT9426 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>支援系統側電池電量計量 </li><li>單節鋰離子/鋰聚合物電池的電量計 </li><li>使用VoltaicGauge™ with Current Sensing(VGCS)演算法計算荷電狀態 (SOC) </li><li>容量計算沒有累積誤差 </li><li>提供電池SOC、SOH、FCC、TTE和迴圈計數報告 </li><li>電壓測量精度：±7.5mV </li><li>電流測量精度：±1% </li><li>電池溫度測量精度：±3°C </li><li>對電池電壓、電流、溫度、SOC和存在狀態進行監控、報警 </li><li>支援電池高倍率充電應用 </li><li>低功耗 </li><li>低值檢測電阻 (2.5至20mΩ，典型值10mΩ) </li><li>12引腳、0.4mm引腳間距WDFN封裝 </li><li>9球、0.4mm間距WL-CSP封裝 </li><li>I<sup>2</sup>C控制介面 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

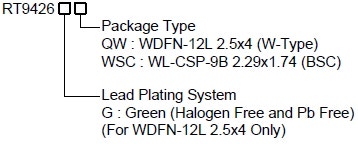

RT9426 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT9426
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT9426
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>智能手機 </li><li>平板電腦 </li><li>穿戴式設備 </li><li>數碼相機 </li><li>數碼攝像機 </li><li>手持和可擕式應用 </li></ul></div>
