RT9516 是適合可擕式應用的全集成、低成本的單節鋰離子電池充電 IC ，它可用交流電源轉接器和 USB 介面進行供電。當兩個輸入都不存在時， RT9516 進入睡眠模式。RT9516 採用優化的方式完成充電任務，可自動選擇預充模式、快充模式和恒壓模式進行充電操作，恒壓模式將自動維持以確保電池總是處於充滿狀態。充電電流可用外部電阻進行調節。內部熱回饋電路可對內核溫度進行調節，使得它在任何可用工作溫度範圍內都可以最佳的充電速率進行充電。它的 VIN 端子可以承受最高 28V 的電壓，其它特性包括欠壓保護、和對交流電源轉接器的過壓保護。RT9516 還包含了一個啟動輔助電路，它對輸入電源和電池連接狀態進行檢測，可在適當狀況下輸出一個信號 ( ABO ) 以啟動系統。RT9516 採用了小型的 WDFN-8L 2x2 封裝以滿足 PCB 空間和 BOM 成本低的綜合要求。

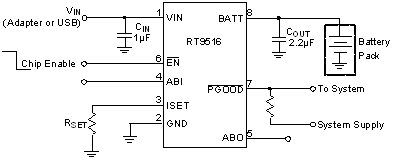

RT9516 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>交流電源轉接器輸入端最高耐壓為 28V </li><li>內部集成 P-MOSFET </li><li>交流電源轉接器電源正常指示 </li><li>可設定充電電流 </li><li>自動啟動輸出信號 </li><li>欠壓保護 </li><li>過壓保護 </li><li>熱回饋優化充電速率 </li><li>符合 RoHS 規範，不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

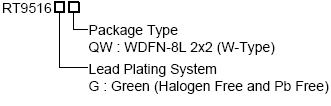

RT9516 訂購資訊
