RT9535B 是採用定電流或恒壓方式對單節或多節鋰離子電池、鎳氫電池和鎳鎘電池進行快速充電的控制器。最大充電電流是由外部電阻進行設定的，最高恒壓輸出可高達22V，其精度為0.5%。充電期間從電源轉接器吸取的電流由第三個控制回路進行限制，這可確保在設備連續工作的情況下以最快的速率對電池進行充電，同時又不超出電源轉接器的負載能力。RT9535B 可以低達 0.4V 的最小壓差對 2.5V~22V 的電池進行充電。當充電電流下降到滿幅度充電電流的 17% 以下時，一個邏輯輸出可以指示出已經完成充電。RT9535B 的封裝是 WQFN-24L 4x4 。

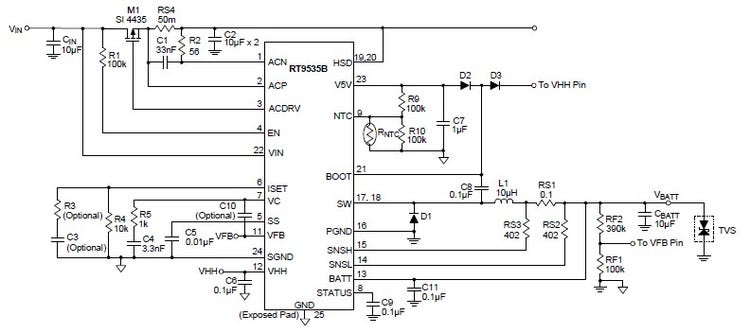

RT9535B 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>可用於鋰離子電池、鎳氫電池和鎳鎘電池的快速充電 </li><li>電池電壓 2.5V~22V 可調 </li><li>高達 95% 的效率 </li><li>充電電流可用電阻設定 </li><li>充電電壓精度為 0.5% </li><li>充電電流精度為 5% </li><li>在輸入電流限制下以最高速率進行充電 </li><li>500kHz 開關切換工作頻率 </li><li>充電完成後有指示信號 </li><li>移除電源轉接器後自動關機 </li><li>空閒模式下的反向電池電流僅 10μA </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

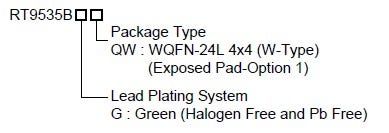

RT9535B 訂購資訊
