RT9611C/D 是一款高頻、同步整流、單相雙 MOSFET 驅動器，設計用於從一般 MOSFET 驅動應用延伸至高效能 CPU VR 驅動能力。RT9611C/D 可用於 V<sub>CC </sub>= 5V 或 V<sub>CC </sub>= 12V 應用。RT9611C/D 亦內建內部功率開關，以取代外部自舉二極體。RT9611C/D 可有效支援高達 500kHz 的切換頻率。RT9611C/D 具備 UGATE 驅動電路與 LGATE 驅動電路，適用於同步整流 DC/DC 轉換器應用。驅動上升 / 下降時間能力設計在 30ns 以內，且直通保護機制設計用於防止高側與低側功率 MOSFET 發生直通。RT9611C/D 具備 PWM 三態關斷與 <span class="overline">OD</span> 輸入關斷功能，可強制驅動器輸出進入高阻抗狀態。RT9611C 與 RT9611D 的差異在於傳播延遲 t<sub>UGATEpdh</sub>。RT9611D 的 t<sub>UGATEpdh</sub> 相較於 RT9611D 更大。因此，RT9611C 通常建議用於效能導向應用，例如高功率密度 CPU VR 或 GPU VR。RT9611C/D 採用小尺寸 WDFN-8L 3x3 封裝。<hr />

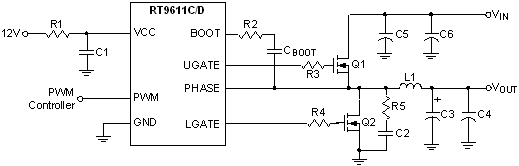

RT9611C/RT9611D 電路圖
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>Drive Two N-MOSFETs </li><li>Adaptive Shoot Through Protection </li><li>Embedded Bootstrap Diode </li><li>Support High Switching Frequency </li><li>Fast Output Rising Time </li><li>Tri-State Input for Bridge Shutdown </li><li>Disable Control Input </li><li>RoHS Compliant and Halogen Free </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

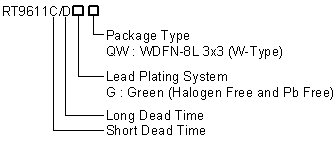

RT9611C/RT9611D 訂購資訊
