RT9627A 是高頻、雙通道的 MOSFET 驅動器，設計用於在一個同步 Buck 轉換器的兩個通道中完成 MOSFET 驅動任務，尤其適合使用在需要高效率和卓越熱性能的移動式電腦應用中。當它和立錡科技的任何一款多相式 Buck PWM 控制器相遇時，即可為那些先進的 CPU 提供穩定的內核電源供應。該驅動器可以極短的上升/下降時間和輸出延時驅動高達 3nF 的負載。它集成了上橋的靴帶式電路，應用中只需使用一隻外接電容，這不僅降低了電路的複雜性，而且容許使用性能較高、成本較低的 N-MOSFET 。自我調整的上下橋貫通保護設計也被集成在其中，這可防止兩隻 MOSFET 同時進入導通狀態。

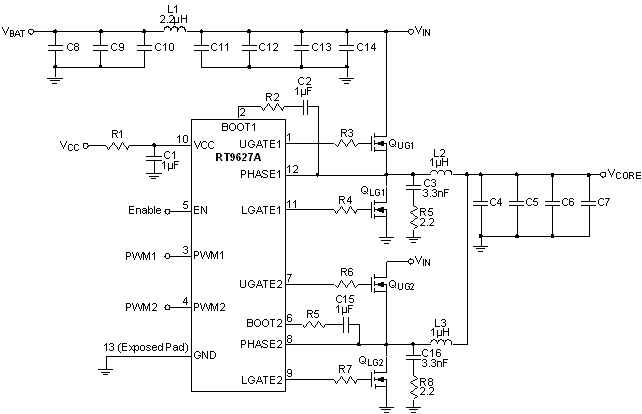

RT9627A 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>雙通道驅動器 </li><li>每個通道驅動兩隻 N-MOSFET </li><li>自我調整貫通防護 </li><li>0.5Ω 導通電阻，4A 電流汲取 能力 </li><li>支援高工作頻率 </li><li>PWM 三態輸入時，功率級進入關機狀態 </li><li>有輸出禁止功能 </li><li>集成自舉開關 </li><li>低偏置電流 </li><li>集成 VCC POR 功能 </li><li>符合 RoHS 規範，不含鹵素 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

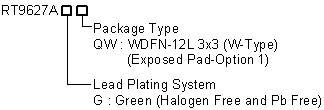

RT9627A 訂購資訊
normal-table
card-list
products
productTable
width
fixed-width
id
productSection
evbImageSwitcher
normal-table
card-list
evb
evbTable
width
fixed-width
id
evbSection
orderingDetail
width
fixed-width
id
orderingDetailSection
technical-documents
RT9627A
technicalDocumentMultipleTable
width
fixed-width
id
technicalDocumentationSection
design-tools
RT9627A
designToolMultipleTable
width
fixed-width
id
designToolSection
32
56
56
56
rt-blue-800
i18n(text.application-title.text-content)
applicationTitle
withLine
24
24
24
24
<div class="spec-list"><ul class="lv1"><li>為 Intel<sup>®、AMD<sup>®</sup> 移動處理器提供內核電源</sup> </li><li>高頻、小尺寸的 DC/DC 轉換器 </li><li>大電流、低輸出電壓的 DC/DC 轉換器 </li><li>高輸入電壓的 DC/DC 轉換器 </li></ul></div>
