RT9711A / B / C / D 為高性價比、低電壓、單 N-MOSFET 的高側電源開關，適用於自供電 (self-powered) 和匯流排供電 (bus- powered) 的串列匯流排 (USB) 應用。RT9711 系列都配備了電荷泵電路來驅動內部 MOSFET 開關。開關的 80mΩ 低 R<sub>DS(ON)</sub> 符合 USB 壓降要求。具有一個輸出指示信號來表示錯誤狀況給 USB 控制器。其它特點包括插入時的軟啟動，用來限制湧入電流、過熱關斷，用來防止開關因高電流負載造成的嚴重失效、欠壓鎖定 (UVLO)，確保有有效的輸入電壓出現前，IC 保持關機、雙埠 (RT9711A/B) 的故障電流限制在 2.5A (典型值)，單埠 (RT9711C/D) 限制在 1A，符合 USB 的電源要求、25μA 低靜態電流使該元件非常適用於可攜式電池供電的設備。RT9711 系列提供 SOT-23-5、TSOT- 23-5、SOP -8 和 MSOP -8 適用於不同板子的應用。

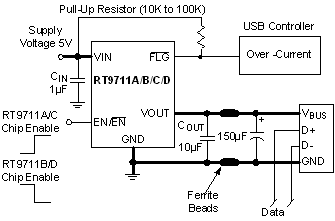

RT9711A/RT9711B/RT9711C/RT9711D 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>符合 USB 規範 </li><li>內置 N-MOSFET </li><li>典型 R<sub>DS(ON)</sub> : 80mΩ (SOT-23-5 & TSOT-23-5) 和 90mΩ (SOP-8 & MSOP-8) </li><li>輸出可以被強制高於輸入 (Off-State) </li><li>低電源電流： </li><li>25μA 典型的開關打開狀態 (Switch On State) </li><li>1μA 典型的開關關閉狀態 (Switch Off State) </li><li>保證 RT9711A/B 1.5A 和 RT9711C/D 0.6A 的連續負載電流 </li><li>寬輸入電壓範圍： 2.5V 至 5.5V </li><li>開路汲極錯誤訊號 (Fault Flag) 輸出 </li><li>熱插拔應用 (軟啟動) </li><li>欠壓鎖定 (UVLO) 典型值 1.7V </li><li>電流限制保護 </li><li>過溫保護 </li><li>反向電流阻斷 (無二極體) </li><li>SOT-23-5 和 TSOT-23-5 小封裝 </li><li>UL 認證-E219878 </li><li>TUV <em>IEC60950-1 : 2005</em> 認證 </li><li>符合 RoHS 標準及 100% 不含鉛 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

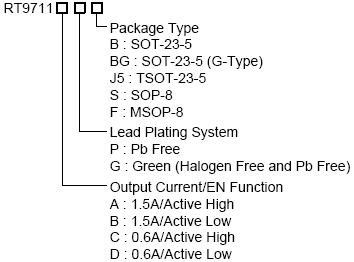

RT9711A/RT9711B/RT9711C/RT9711D 訂購資訊
