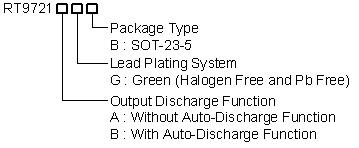

RT9721A/RT9721B 是一系列低電壓單 N-MOSFET 高側電源開關（High-Side Power Switch），專為自供電（Self-Powered）及匯流排供電（Bus-Powered）的 USB（Universal Serial Bus）應用最佳化設計。RT9721A/RT9721B 內建電荷幫浦（Charge Pump）驅動電路，用於驅動內部 MOSFET 開關；其低導通電阻（RDS(ON)）僅 80mΩ，可滿足 USB 規範對電壓降的要求。此外，產品提供故障旗標（Flag）輸出，可向本地 USB 控制器回報異常狀態。 本產品還具備多項保護功能，包括軟啟動（Soft-Start）功能，可限制插入設備時的湧入電流；過溫保護（Thermal Shutdown）功能，可避免高電流負載造成開關元件損壞；以及欠壓鎖定保護（UVLO），確保只有在有效輸入電壓存在時元件才會啟動。 依據 USB 電源規範要求，雙埠應用時最大輸出電流限制通常為 750mA。此外，其靜態電流低至 50μA，使其非常適合可攜式電池供電設備。 RT9721A 不具備輸出自動放電（Auto-Discharge）功能，而 RT9721B 則內建輸出自動放電功能，可在關閉時快速釋放輸出端殘留電荷。 RT9721A/RT9721B 採用 SOT-23-5 封裝，可有效節省電路板空間並降低系統尺寸。

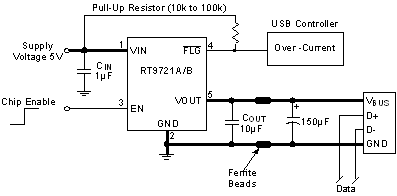

RT9721A/RT9721B 電路圖
