RTQ2822T 是一款高效能同步降壓轉換器（Synchronous Step-Down Converter），輸入電壓範圍為 4.5V 至 17V，最大可提供 15A 輸出電流。產品整合低導通電阻（RDS(ON)）功率 MOSFET、精準的 0.6V 參考電壓以及自舉電路所需的內建二極體，可提供相當精巧的電源解決方案。 RTQ2822T 採用先進固定導通時間控制（Advanced Constant On-Time，ACOT®）架構，可提供超高速暫態響應，同時進一步減少外部元件數量。在穩態運作下，ACOT® 控制可在輸入電壓、負載及輸出電壓變化範圍內維持近乎固定的開關頻率，使 EMI 濾波器設計更加容易。 本產品提供多項功能以提升設計彈性，包括可選擇的開關頻率、電流限制等級及 PWM 運作模式，使 RTQ2822T 能輕鬆應用於各種不同系統需求。此外，產品提供獨立的使能控制（EN）輸入及 Power Good 指示訊號，方便進行電源時序控制。 為了控制啟動期間的湧入電流，RTQ2822T 提供可程式化軟啟動功能，只需於 SS 腳位外接電容即可設定啟動時間。產品同時整合完整保護機制，包括逐週期限流保護（Cycle-by-Cycle Current Limit）、輸出欠壓保護（UVP）、輸入欠壓鎖定保護（UVLO）以及過溫保護（OTP），確保系統安全可靠運作。 RTQ2822T 採用散熱強化型 VQFN-18L 3.5mm × 3.5mm（FC）封裝。

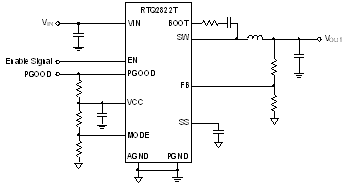

RTQ2822T 電路圖
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
scrollable-table
parameterTable
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
productFeature
<div class="spec-list"><ul class="lv1"><li>4.5V to 17V Input Voltage Range </li><li>Integrated 9.8mΩ/4.5mΩ MOSFETs </li><li>0.6V ±1% Voltage Reference </li><li>Adjustable Output Voltage from 0.6V to 5.5V </li><li>Supports Ceramic Output Capacitor </li><li>ACOT<sup>®</sup> Control for Fast Transient Response </li><li>Selectable Switching Frequency (400kHz/800kHz/1200kHz) </li><li>Selectable Current Limit Level </li><li>Power Good Indicator </li><li>Programmable Soft-Start Time with a Default 1.2ms </li><li>Monotonic Start-Up into Pre-Biased Outputs </li><li>18-Lead VQFN (FC) Package </li></ul></div>
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
productImageSwitcher

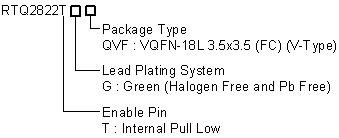

RTQ2822T 訂購資訊
