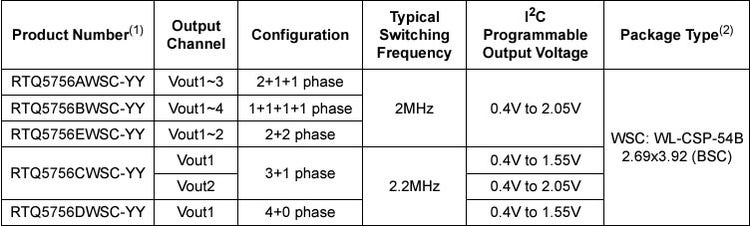

RTQ5756 系列產品是具備 4 相能力的同步降壓轉換器，可支援多相與單相運作。這些產品提供廣泛的配置選項。RTQ5756A 提供 2+1+1 相三路輸出，而 RTQ5756B 提供 1+1+1+1 相四路輸出。RTQ5756C 提供 3+1 相雙路輸出，RTQ5756D 提供 4 相單路輸出。最後，RTQ5756E 提供 2+2 相雙路輸出。此靈活性與高整合度使 RTQ5756 系列適用於各種需要高電流與精簡電源管理解決方案的應用，例如低功耗處理器、I/O 電源、FPGA 核心電源、DSP 與其他 ASIC。憑藉 3V 至 5.5V 的輸入電壓範圍，這些轉換器可相容於各種低電壓系統。它們可提供高達 20A 峰值電流，並支援 0.4V 至 1.55V 的輸出電壓。RTQ5756 系列產品亦提供可程式化功能，包括電壓位準、電壓變化斜率與軟啟動斜率，可透過最高 3.4MHz 運作的 I<sup>2</sup>C 介面進行控制。此外，這些產品支援遠端感測功能，以確保重載下的輸出電壓準確。它們配備中斷與故障偵測功能，可回報任何錯誤狀態。RTQ5756 系列產品採用 WL-CSP-54B 2.69x3.92 (BSC) 封裝。建議接面溫度範圍為 −40°C 至 125°C。請參閱訂購資訊以了解各料號的主要功能。
3

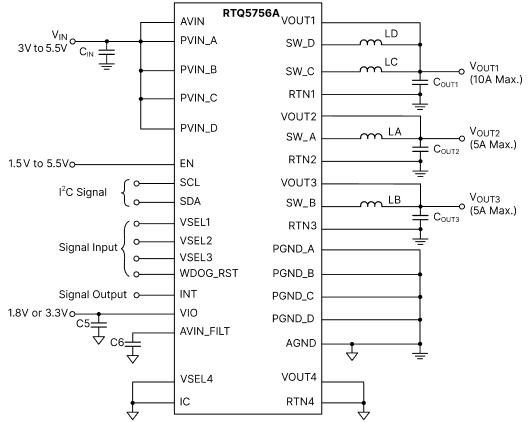

RTQ5756 電路圖
