RTQ6345是負載能力為5A、高效率、採用峰值電流模式控制架構的非同步Buck轉換器，輸入電壓範圍為4V~42V，輸出電壓可調範圍為0.8V~V<SUB>IN</SUB>。其靜態耗電低，集成了低R<SUB>DS(ON)</SUB>的 MOSFET上橋開關，可在寬闊的負載範圍內獲得高轉換效率。由於採用週邊補償簡單的峰值電流模式控制架構，容許使用小型電感，具有瞬態回應速度快和回路穩定性好的特性。</br>其工作頻率在100kHz~2500kHz間可調，選擇輸出濾波元件時可在效率和元件尺寸間進行優化。其最小導通時間很短，即使在降壓比很高時也能保持固定的工作頻率。在對切換雜訊敏感的應用中，可以使用300kHz~2200kHz的外部信號對其進行同步操作。</br>RTQ6345具有完備的保護性功能設計，如輸入欠壓鎖定保護、輸出欠壓保護、輸出過壓保護、過流保護和熱關機保護等，有逐週期電流限制保護可應對輸出端短路等惡劣狀況，有軟啟動設計可消除啟動期間的電流衝擊。</br>RTQ6345使用WDFN-10L 4x4和具有外露式散熱焊盤的SOP-8封裝供貨。

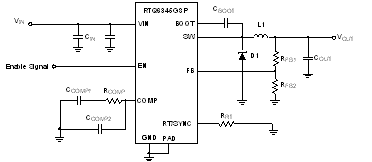

RTQ6345 電路圖
width
fixed-width
id
basicInfoImageSection
anchor
productDetailSection
i18n(anchor-tab.product-detail-section.title)
productDetailSectionAnchorTab
orderingInformationSection
i18n(anchor-tab.ordering-information-section.title)
orderingInformationSectionAnchorTab
technicalDocumentationSection
i18n(anchor-tab.technical-documentation-section.title)
technicalDocumentationSectionAnchorTab
designToolSection
i18n(anchor-tab.design-tool-section.title)
designToolSectionAnchorTab
applicationSection
i18n(anchor-tab.application-section.title)
applicationSectionAnchorTab
supportSection
i18n(anchor-tab.support-section.title)
supportSectionAnchorTab
width
full-width
id
anchorSection
24
24
24
24
i18n(tabs.product-detail.title)
productDetailTabs
i18n(tab-item.parameter-section.title)
parameterSection
parameterSectionTab
i18n(tab-item.package-size-pin-size-section.title)
packageSizePinsSizeSection
packageSizePinsSizeSectionTab
i18n(tab-item.product-feature-section.title)
productFeatureSection
productFeatureSectionTab
24
24
24
24
buttonSeeProductDifferences
text-with-icon
right
secondary-m
tertiary
i18n(button-item.see-product-differences.button-label)
i18n(button-item.see-product-differences.button-link)
_self
false
buttonFindOtherCategory
text-with-icon
right
secondary-m
tertiary
i18n(button-item.find-other-category.button-label)
i18n(button-item.find-other-category.button-link)
_self
false
32
32
32
32
width
fixed-width
backgroundColor
F5F6F8
id
productDetailSection
scrollable-table
parameterTable
width
fixed-width
id
parameterSection
normal-table
table-group
package-size-pins-size
packageSizePinsSizeTable
width
fixed-width
id
packageSizePinsSizeSection
productFeature
<div class="spec-list"><ul class="lv1"><li>輸入電壓範圍： <ul class="lv2"> <li></li><li>4.5V~42V </li><li>4V~42V（軟啟動結束以後） </li></ul> </li><li>輸出電壓範圍：0.8V~V<sub>IN</sub> </li><li>參考電壓：0.8V±1.5% </li><li>峰值電流模式控制架構 </li><li>集成70mΩ MOSFET上橋開關 </li><li>靜態電流消耗：100μA </li><li>關機電流消耗：2.25μA </li><li>工作頻率可調範圍：100kHz~2.5MHz </li><li>可同步工作頻率範圍：300kHz~2.2MHz </li><li>PSM 輕載節能模式 </li><li>集成自舉電容複充開關，使能輕載低壓差直通工作模式 </li><li>型號可選外部可調軟啟動 </li><li>使能控制 </li><li>可調節欠壓鎖定保護閾值和滯回值 </li><li>內建欠壓鎖定保護、欠壓保護、過壓保護、過流保護和過熱保護等功能 </li></ul></div>
width
fixed-width
id
productFeatureSection
24
24
24
24
i18n(tabs.ordering-information.title)
orderingInformationTabs
i18n(tab-item.product-section.title)
productSection
productSectionTab
i18n(tab-item.evb-section.title)
evbSection
evbSectionTab
i18n(tab-item.ordering-detail-section.title)
orderingDetailSection
orderingDetailSectionTab
24
24
24
24
width
fixed-width
id
orderingInformationSection
productImageSwitcher

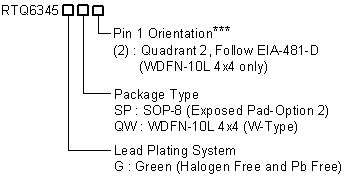

RTQ6345 訂購資訊
