Richtek

RT1715 Type-C Port Controller Evaluation Board

EVB_RT1715WSC

Share

The RT1715 is a USB Type-C controller that complies with the latest USB Type-C and PD standards. The RT1715 integrates a complete Type-C Transceiver including the Rp and Rd resistors. It does the USB Type-C detection including attach and orientation. The RT1715 integrates the physical layer of the USB BMC power delivery protocol to allow up to 100W of power and role swap. The BMC PD block enables full support for alternative interfaces of the Type-C specification.

Purpose

The RT1715 is a USB Type-C controller that complies with the latest USB Type-C and PD standards. This document explains the function and use of the RT1715 evaluation board (EVB), and provides information to enable operation, modification of the evaluation board and circuit to suit individual requirements.


Introduction

General Product Information

The RT1715 is a USB Type-C controller that complies with the latest USB Type-C and PD standards. The RT1715 integrates a complete Type-C Transceiver including the Rp and Rd resistors. It does the USB Type-C detection including attach and orientation. The RT1715 integrates the physical layer of the USB BMC power delivery protocol to allow up to 100W of power and role swap. The BMC PD block enables full support for alternative interfaces of the Type-C specification.


Product Feature

  • Dual-Role PD Compatible
  • Attach/Detach Detection as Host, Device or DRP
  • Current Capability Definition and Detection
  • Cable Recognition
  • Alternate Mode Support
  • Supporting VCONN with Programmable OCP
  • Dead Battery Support
  • Ultra-Low Power Mode for Attach Detection
  • Simple I2C Interface with AP or EC
  • BIST Mode Supported
  • Supported PD 3.0 except Fast Role Swap Function
  • e-fuse IP
  • 9-Ball WL-CSP Package

Key Performance Summary Table

Key Features

Evaluation Board Number : PCB094_V2

Default Input Voltage

12V

VBUS Output Current

3A

VBUS Voltage

5V as RT1715 is source. 5V to 20V as RT1715 is sink.

Default Marking & Package Type

RT1715WSC, WL-CSP-9B 1.38x1.34 (BSC)

Operation Mode

DRP, Dead battery



Bench Test Setup Conditions

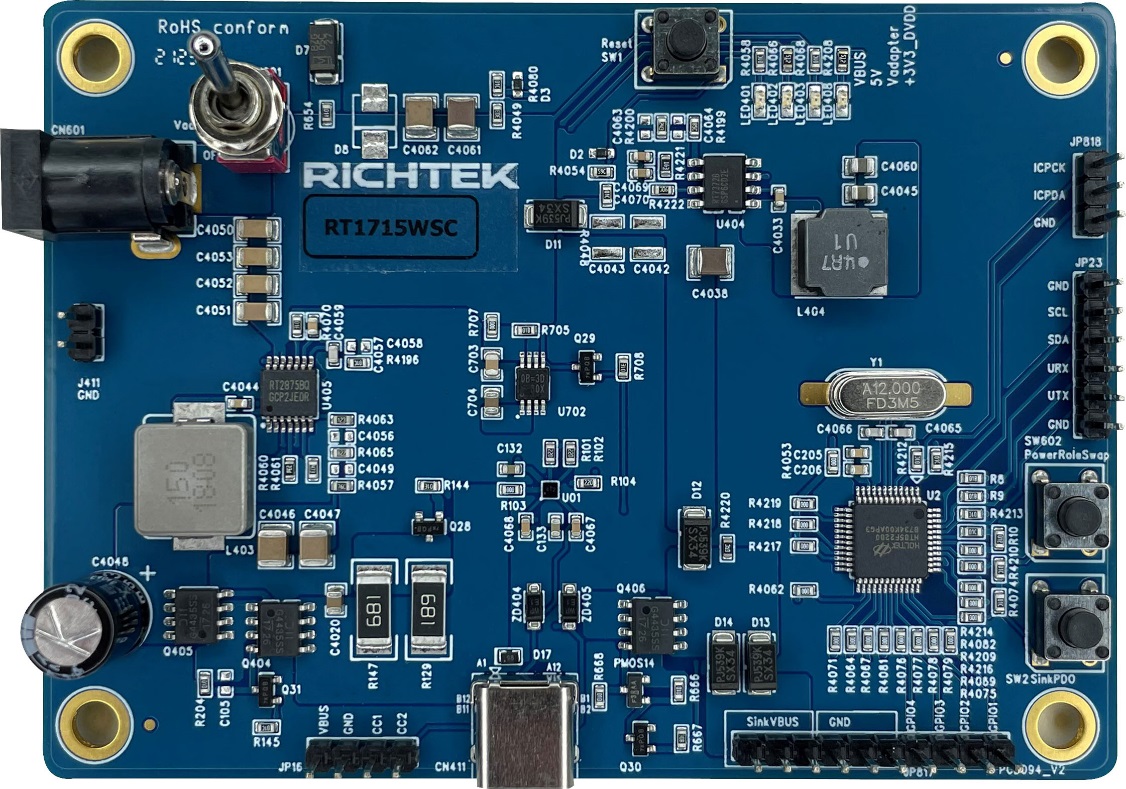

Headers Description and Placement

Technical Document Image Preview

Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at evb_service@richtek.com.



Test Points

The EVB is provided with the test points and pin names listed in the table below.

Test point/

Pin name

Signal

Comment (expected waveforms or voltage levels on test points)

VBUS

Voltage

5V as RT1715 is souorce. 5V to 20V as the RT1715 is sink.

CC1

Configuration channel 1

CC1 is used to establish and manage the Source-to-Sink connection.

CC2

Configuration channel 2

CC2 is used to establish and manage the Source-to-Sink connection.

GND

Ground

Ground.

SinkVBUS

Sink voltage

As the RT1715 is sink, sink path will turn on. The RT1715 will get power from port partner for system applications.

GPIO1 to GPIO 4

General purpose I/O 1 to 4

These four pins are used to control other functions in system for user.

UTX, URX

Signal for log

These two pins are used to trace log of Micron.

SDA, SCL

I2C signal

These two pins are I2C communication between the RT1715 and Micron.

ICPDA, ICPCK

Signal for programming

These two pins are used to program Micron.



Operations

The RT1715 supports DRP and Dead battery mode in this evaluation board. The followings explain the functions.

1. Insert 12V adapter and turn on the toggle switch. The 5V, Vadapter, and +3V3_DVDD LEDs wll light up. CC1 and CC2 will start DRP toggling.

2. If the RT1715 is attached as source, ie CC is presented as Rp, source path will be on and output 5V at VBUS.

Pressing “PowerRoleSwap” button will execute power role swap. If sink side accepts, source path will be off, the RT1715 will swap to sink, sink path will be on, and there will be 5V at SinkVBUS.

After the RT1715 swaps to sink, pressing “SinkPDO” button will ask next PDO (PD_Object) from port partner.

3. If the RT1715 is attached as sink, ie CC is presented as Rd, sink path will be on and there will be 5V at SinkVBUS.

Pressing “SinkPDO” button will ask next PDO (PD_Object) from port partner.

Pressing “PowerRoleSwap” button will execute power role swap. If source side accepts, sink path will be off, the RT1715 will swap to source, source path will be on, and there will be 5V at VBUS.

4. If 12V adapter is not inserted, CC1 and CC2 will present Rd. If source is inserted into Type C receptacle, the whole EVB will be active. The sink path will be on and there will be 5V at SinkVBUS.

Pressing “SinkPDO” button will ask next PDO (PD_Object) from port partner.

Pressing “PowerRoleSwap” button will not execute power role swap because there is no adapter power.

5. Pressing “Reset” button will reset +3V3_DVDD. Micron and the RT1715 will be reseted.



Schematic, Bill of Materials & Board Layout

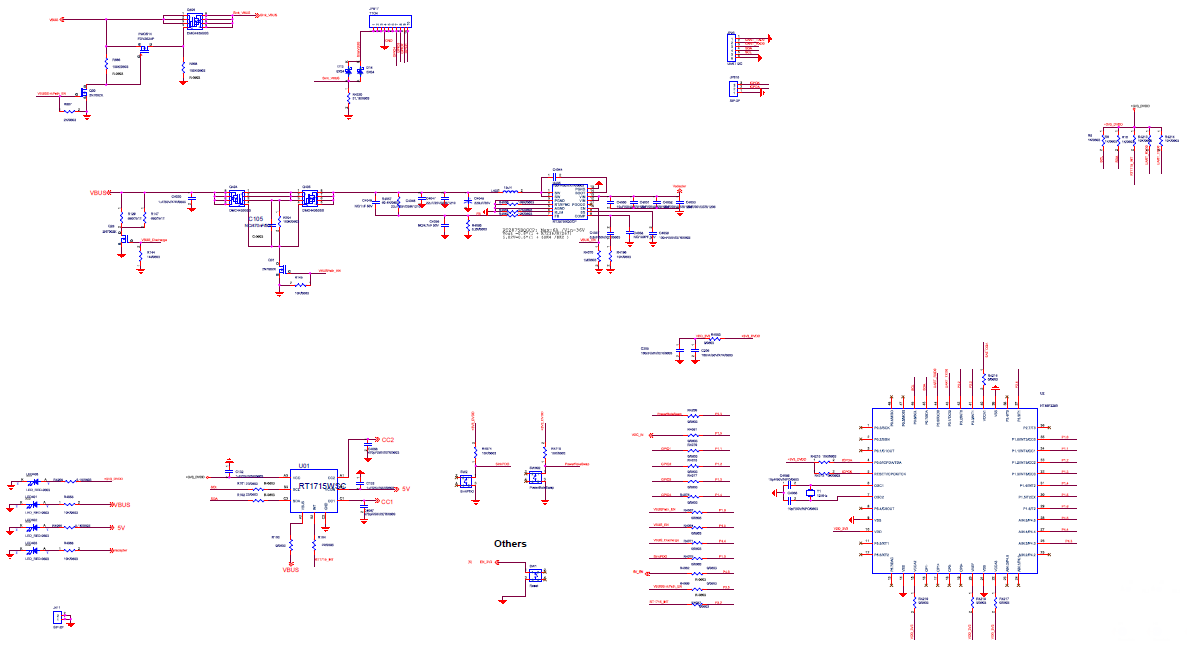

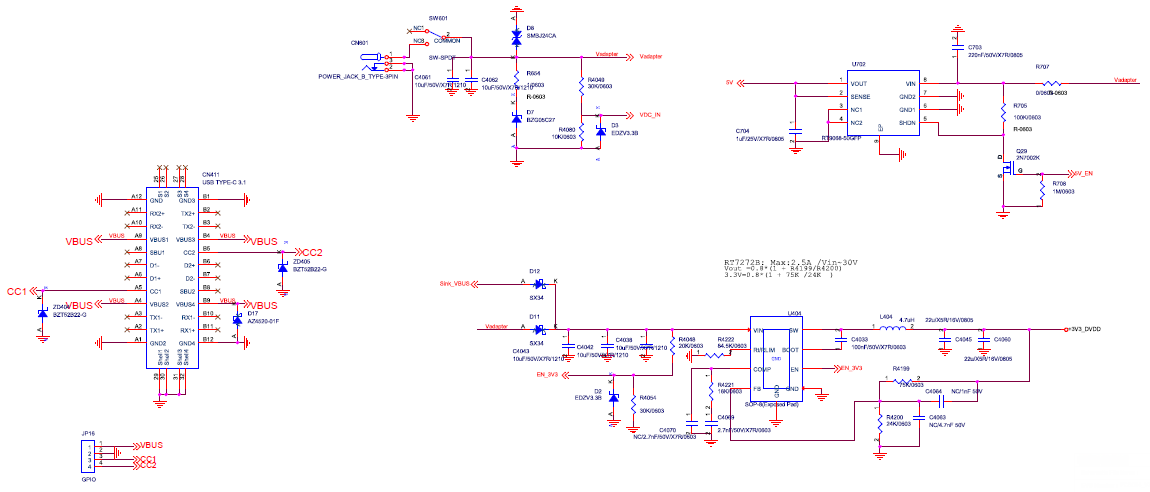

EVB Schematic Diagram

Technical Document Image Preview

Technical Document Image Preview



Bill of Materials

Reference

Qty

Part Number

Description

Package

Manufacturer

C105

1

NC/470nF/50V

C132, C133

2

TMK107BJ105KA-T

1µF/25V/X5R

0603

TAIYO YUDEN

C205, C206, C4033, C4044, C4059

5

GRM188R71H104KA93D

100nF/50V/X7R

0603

muRata

C703

1

C2012X7R1H224K125AA

220nF/50V/X7R

0805

TDK

C704

1

UMK212B7105KG-T

1µF/25V/X7R

0805

TAIYO YUDEN

C4020

1

UMK212B7105KG-T

1µF/50V/X7R

0805

TAIYO YUDEN

C4038, C4061, C4062

3

10µF/50V/X7R

1210

muRata

C4042, C4043

2

NC/10µF/50V/X7R

1210

muRata

C4045, C4060

2

C2012X5R1C226KT0001

22µ/X5R/16V

0805

TDK

C4046, C4047

2

GRM32E61E226KE15L

22µF/25V/X5R

1210

muRata

C4048

1

35YXG220MEFC8X16

220µF/35V

徑向

Rubycon

C4049

1

NC/1nF/50V

0603

C4050, C4051, C4052, C4053

4

C3216X5R1H106K160AB

10µF/50V/X5R

1206

TDK

C4056

1

NC/4.7nF/50V

0603

C4057

1

0603B682K500CT

6.8nF/50V/X7R

0603

WALSIN

C4058

1

NC/180pF/50V

0603

C4063

1

NC/4.7nF/50V

0603

C4064

1

NC/1nF/50V

0603

C4065, C4066

2

0603N100J500CT

10pF/50V/NPO

0603

WALSIN

C4067, C4068

2

0603B471K500CT

470pF/50V/X7R

0603

WALSIN

C4069, C4070

2

0603B272K500CT

2.7nF/50V/X7R

0603

WALSIN

CN411

1

121U-3CST-09CR

USB Type-C 3.1

9.87x9.75mm

JEM (建舜電子)

CN601

1

POWER_JACK_B_TYPE-3PIN

PWR_JACK_B_360B

D2, D3

2

MM5Z2V7

MM5Z2V7

SOD-523

SECOS

D7

1

BZG05C27

BZG05C27

SMA/DO-214AC

Vishay

D8

1

SMBJ24CA

SMBJ24CA

SMB/DO-214AA

FAIRCHILD

D11, D12, D13, D14

4

SX34

SX34

SMA/DO-214AC

PANJIT

D17

1

AZ4520-01F

AZ4520-01F

1.6x1.0mm

Amazing

L403

1

M10A1509MT-C

15µH

L-M104L

Nichtek

L404

1

NR8040T4R7N

4.7µH

L-8x8

TAIYO YUDEN

LED401, LED402, LED403, LED408

4

LNL-191SUR

LED_RED-0603

LED-0603

LighTop

PMOS14

1

FDN352AP

FDN352AP

SOT-23-3/TO-236

FAIRCHILD

Q28, Q29, Q30, Q31

4

2N7002K

2N7002K

SOT-23

PANJIT

Q404, Q405, Q406

3

DMG4435SSS

DMG4435SSS

SOIC-8

DIODES

R8, R9, R10

3

RTT031001FTP

1k

0603

RALEC

R101, R102, R104

3

WR06X22R0FTL

22

0603

WALSIN

R103, R707, R4053, R4062, R4064, R4067, R4069, R4071, R4075, R4076, R4077, R4078, R4079, R4081, R4082, R4209, R4216, R4217, R4218, R4219

20

WR06X000 PTL

0

0603

WALSIN

R129, R147

2

3520680RJT

680

2512

TE Connectivity

R144, R708, R4070

3

WR06X1004FTL

1M

0603

WALSIN

R145, R4048, R4058, R4068, R4074, R4080, R4196, R4210, R4212, R4213, R4214, R4215

12

WR06X1002FTL

10k

0603

WALSIN

R204, R666, R668, R705

4

WR06X1003FTL

100k

0603

WALSIN

R654

1

WR06W1R00FTL

1

0603

WALSIN

R667

1

WR06X2001FTL

2k

0603

WALSIN

R4049

1

WR06X3002FTL

30k

0603

WALSIN

R4054

1

WR06X4022FTL

40.2k

0603

WALSIN

R4057

1

WR06X6204FTL

60.4k

0603

WALSIN

R4060

1

RTT031693FTP

169k

0603

RALEC

R4061

1

WR06X4702FTL

47k

0603

WALSIN

R4063

1

WR06X1202FTL

12k

0603

WALSIN

R4065

1

WR06X8201FTL

8.2k

0603

WALSIN

R4066, R4208

2

WR06X5101FTL

5.1k

0603

WALSIN

R4199

1

WR06X7502FTL

75k

0603

WALSIN

R4200

1

WR06X2402FTL

24k

0603

WALSIN

R4220

1

RTT035112FTP

51.1k

0603

RALEC

R4221

1

WR06X1602FTL

16k

0603

WALSIN

R4222

1

WR06X8452FTL

84.5k

0603

WALSIN

SW1, SW2, SW602

3

HTS6601H

Reset

TACT-BTN

High-Tronics

SW601

1

DS-41T1B1A1QN

SW-SPDT

27.69x8.13x5.08x2.54mm

YUAN CHIN

U01

1

RT1715WSC

USB Type-C PD Controller

WL-CSP-9L 1.38x1.34 (BSC)

Richtek

U2

1

HT85F2280

HT85F2280

LQFP7_48L

HOLTEK

U404

1

RT7272BGSP

DC-DC Converter

PSOP-8

Richtek

U405

1

RT2875BQGCP

Step-Down Converter

TSSOP-14

Richtek

U702

1

RT9068-50GFP

Linear Regulator

MSOP-8

Richtek

Y1

1

HC-49S

12MHz

HC-49S

AKER

ZD404, ZD405

2

BZT52B22

BZT52B22

SOD-123

VISHAY



PCB Layout

Technical Document Image Preview

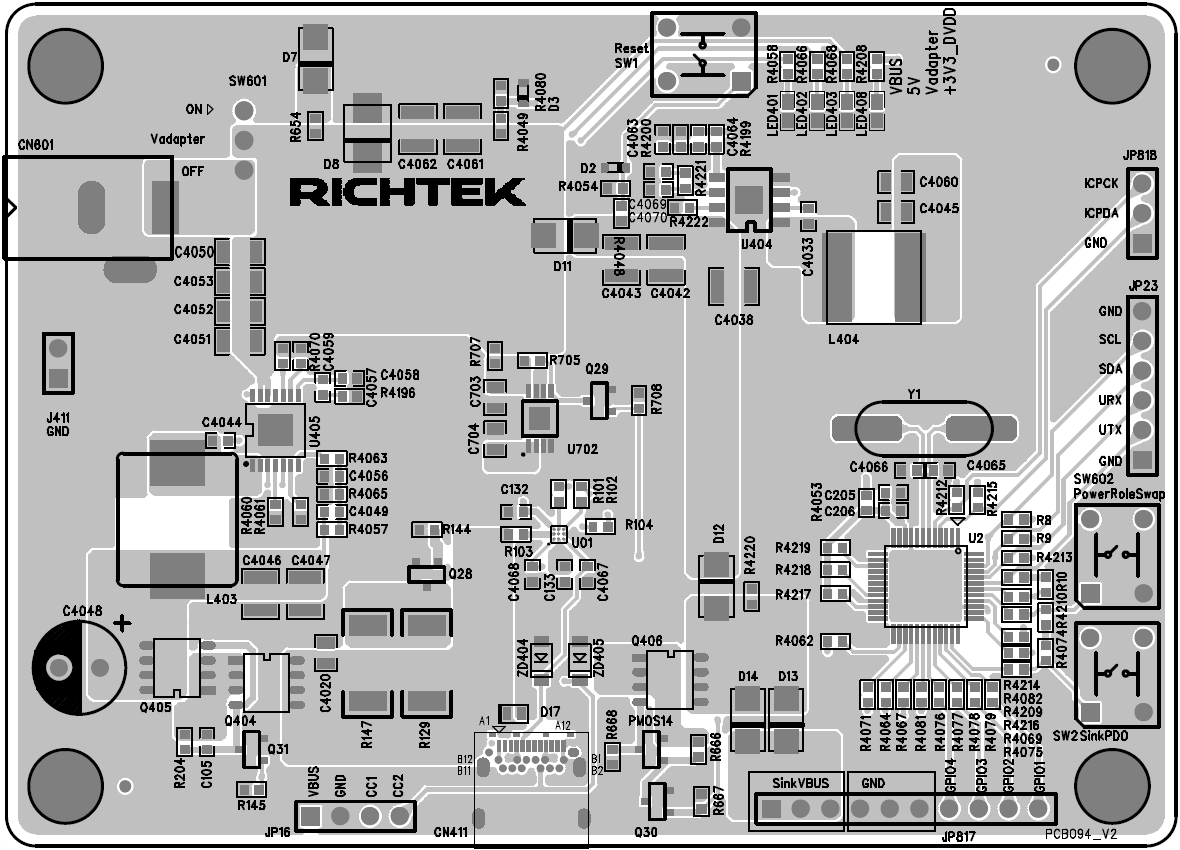

Top View (1st layer)

Technical Document Image Preview

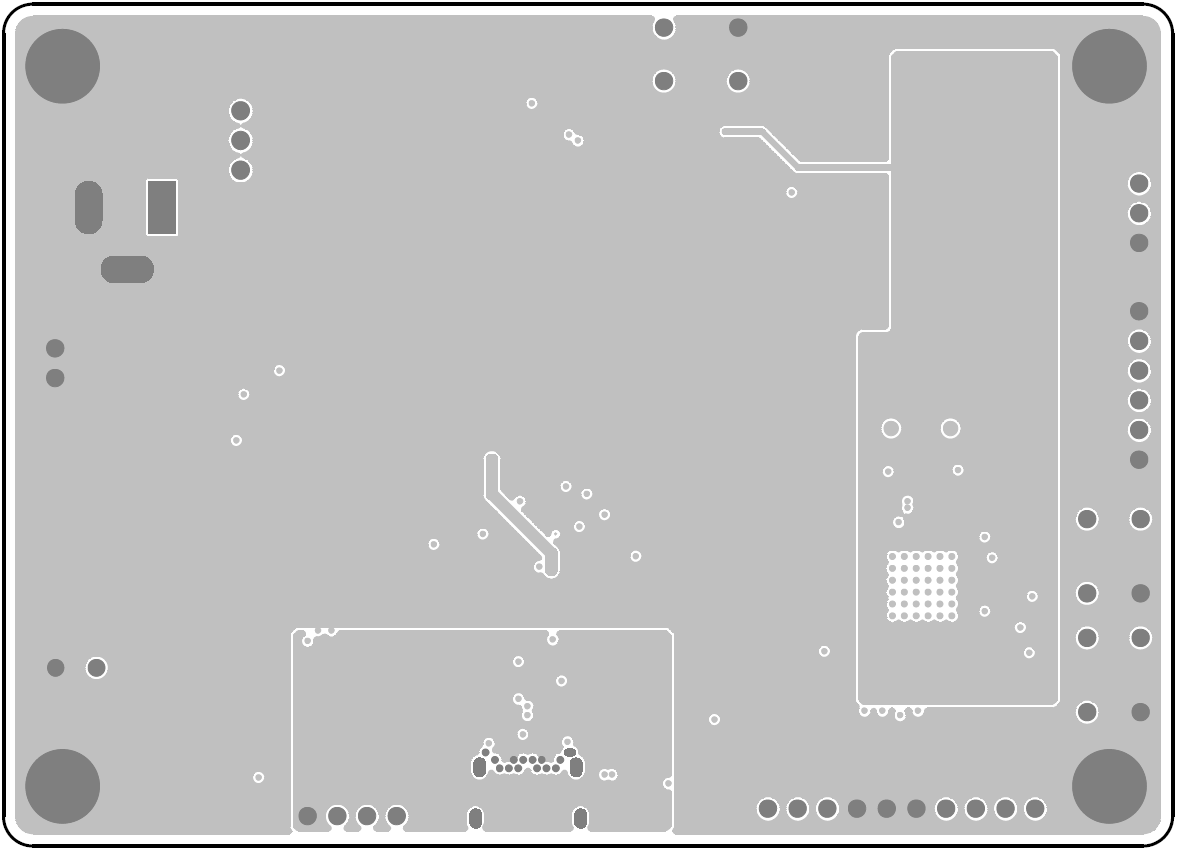

PCB Layout—Inner Side (2nd Layer)

Technical Document Image Preview

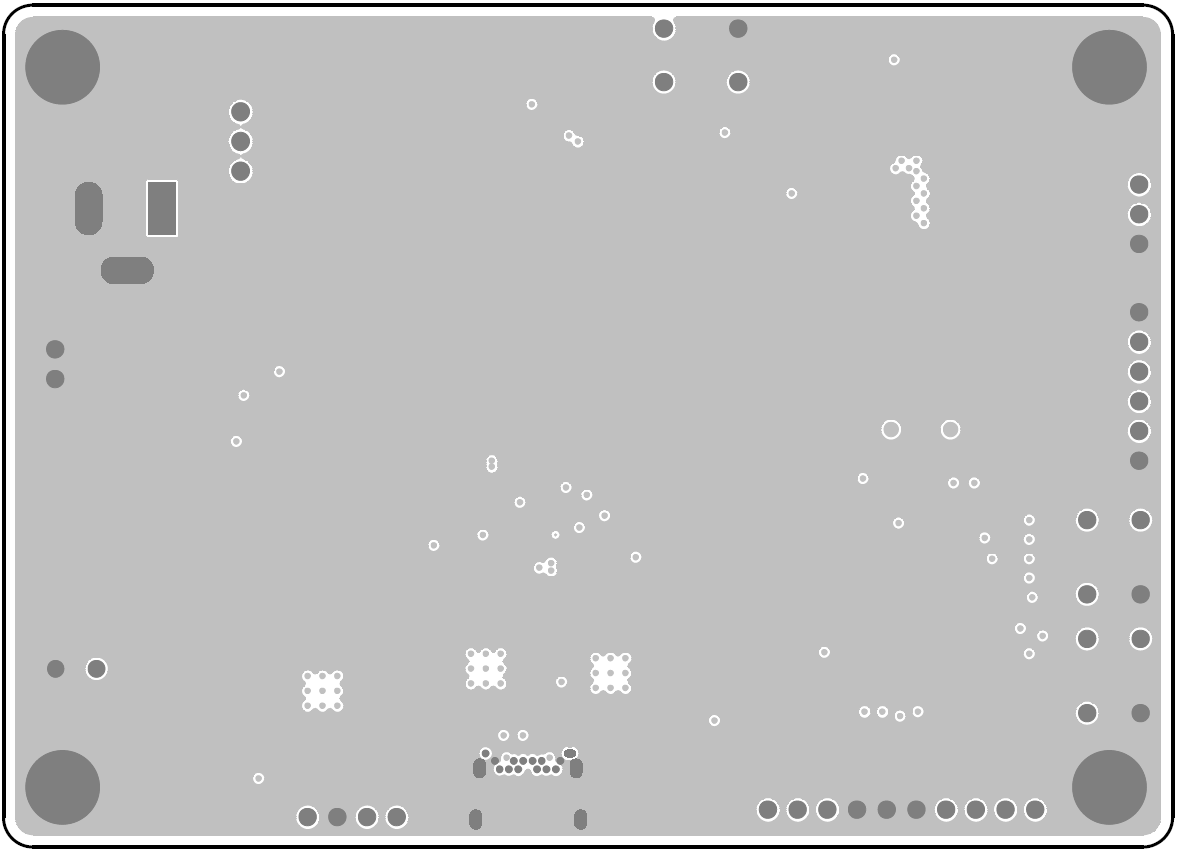

PCB Layout—Inner Side (3rd Layer)

Technical Document Image Preview

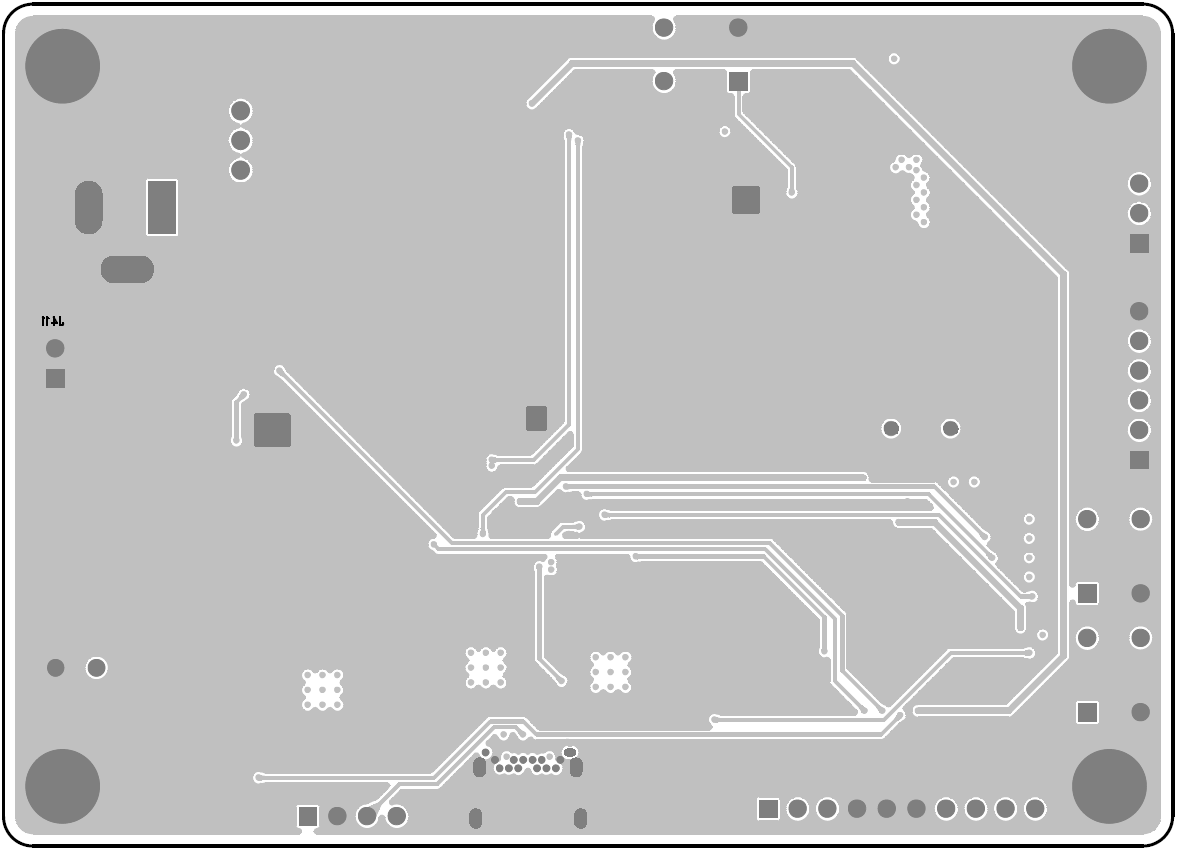

Bottom View (4th Layer)
