1A, 1.5MHz, 6V CMCOT Synchronous Step-Down Converter

EVB_RT5710AHGQW

Share

The RT5710A is a high efficiency synchronous step-down DC-DC converter. Its input voltage range is from 2.5V to 6V and provides an adjustable regulated output voltage from 0.6V to 3.4V while delivering up to 1A of output current. The internal synchronous low on-resistance power switches increase efficiency and eliminate the need for an external Schottky diode. The Current Mode Constant-On-time (CMCOT) operation with internal compensation allows the transient response to be optimized over a wide range of loads and output capacitors.

Purpose

The RT5710A is a high efficiency synchronous step-down DC-DC converter. Its input voltage range is from 2.5V to 6V and provides an adjustable regulated output voltage from 0.6V to 3.4V while delivering up to 1A of output current. This document explains the function and use of the RT5710A evaluation board (EVB), and provides information to enable operation, modification of the evaluation board and circuit to suit individual requirements.


Introduction

General Product Information

The RT5710A is a high efficiency synchronous step-down DC-DC converter. Its input voltage range is from 2.5V to 6V and provides an adjustable regulated output voltage from 0.6V to 3.4V while delivering up to 1A of output current. The internal synchronous low on-resistance power switches increase efficiency and eliminate the need for an external Schottky diode. The Current Mode Constant-On-time (CMCOT) operation with internal compensation allows the transient response to be optimized over a wide range of loads and output capacitors.

Product Feature

  • Efficiency Up to 95%
  • RDSON 160mΩ HS / 110mΩ LS
  • VIN Range 2.5V to 6V
  • VREF 0.6V with ±2% Accuracy
  • CMCOTTM Control Loop Design for Best Transient Response, Robust Loop Stability with Low-ESR (MLCC) COUT
  • Fixed Soft-Start 1.2ms
  • Cycle-by-Cycle Over-Current Protection
  • Input Under-Voltage Lockout
  • Output Under-Voltage Protection (UVP Hiccup)
  • Thermal Shutdown Protection
  • Power Saving at Light Load

Key Performance Summary Table

Key Features

Evaluation Board Number : PCB104_V1

Default Input Voltage

3.3V

Max Output Current

1A

Default Output Voltage

1.2V

Default Marking & Package Type

RT5710AHGQW, WDFN-6L 2x2

Operation Frequency

1.5MHz in CCM mode



Bench Test Setup Conditions

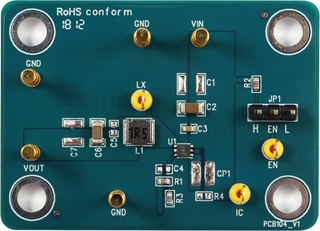

Headers Description and Placement

Technical Document Image Preview

Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at evb_service@richtek.com.



Test Points

The EVB is provided with the test points and pin names listed in the table below.

Test point/

Pin name

Signal

Comment (expected waveforms or voltage levels on test points)

NC, IC

No Internal Connection

No internal connection.

EN

Enable Control Input

Enable control input.

VIN

Supply Voltage Input

The RT5710A operates from a 2.5V to 6V input.

LX

Switch Node

Switch node.

GND

Ground

Ground. The exposed pad must be soldered to a large PCB and connected to GND for maximum thermal dissipation.

FB

Feedback

Feedback.

VOUT

Output Voltage

Output voltage.



Power-up & Measurement Procedure

1. Apply a 3.3V nominal input power supply (2.5V < VIN < 6V) to the VIN and GND terminals.

2. Set the jumper at JP1 to connect terminals 2 and 3, connecting EN to VIN through resistor R2 (100kΩ). The Enable pin can connected to VIN directly as well to enable operation.

3. Verify the output voltage (approximately 1.2V) between VOUT and GND.

4. Connect an external load up to 1A to the VOUT and GND terminals and verify the output voltage and current.


Output Voltage Setting

Set the output voltage with the resistive divider (R1, R3) between VOUT and GND with the midpoint connected to FB. The output is set by the following formula :

Technical Document Image Preview

The placement of the resistive divider should be within 5mm of the FB pin. The resistance of R3 is suggested between 10kΩ and 150kΩ to minimize power consumption, and noise pick-up at the FB pin. The resistance of R1 can then be obtained as below :

Technical Document Image Preview

For better output voltage accuracy, divider resistors (R1 and R3) should have tolerance of ±1% tolerance or better.



Schematic, Bill of Materials & Board Layout

EVB Schematic Diagram

Technical Document Image Preview

Note :

1. Do not hot-plug a live 3.3V supply to the board; if hot-plugging is required, add ~100µF electrolytic capacitor at the input.

A small feedforward capacitor (C4) can be introduced into the feedback network to speed up the transient response of high output voltage circuits. Adding C4 can also improve the light load PSM switching behavior. The feedforward capacitor is added across the upper FB divider.

To optimize transient response, C4 value is chosen so that the gain and phase boost of the feedback network increases the bandwidth of the converter, while still maintaining an acceptable phase margin. Generally, larger C4 values provide higher bandwidth, but may result in an unacceptable phase margin or instability.



Measurement Results

Output ripple measurement, 10mA load

Blue : VOUT ; Cyan : V-LX

Output ripple measurement, 1A load

Blue : VOUT ; Cyan : V-LX

TEK00068

TEK00069

Output ripple : 24mVpp

Output ripple : 5.6mVpp, Frequency : 1.519MHz

Dynamic load 30mA to 800mA

Blue : VOUT ; Green : Load current step

Dynamic load 300mA to 800mA

Blue: VOUT ; Green : Load current step

TEK00070

TEK00071

Overshoot : 13mV, undershoot : 30mV

Overshoot : 13mV, undershoot : 15mV

OCP measurement : Dynamic load close to OCP

Yellow : VOUT; Blue : Load current step

OCP measurement : Gradually increase load

Yellow : VOUT; Blue : IOUT

Technical Document Image Preview

Technical Document Image Preview

V-out starts to drop at 1.78A load current

Auto recovery hiccup mode when OC limit is exceeded.

Start-up measurement from Enable : EN pin low – high

Green : Enable; Yellow : VOUT; Blue : IOUT

Start-up measurement from VIN :

Green : VIN; Yellow : VOUT; Blue : IOUT

Technical Document Image Preview

Technical Document Image Preview

Start-up time 1.3msec. Soft-start 1.2msec

VIN > 2.22V initiates start-up



Efficiency Measurements

3.3V to 1.2V

VIN (V)

VOUT (V)

IIN (A)

IOUT (A)

Efficiency (%)

3.299

1.220

0.0005141

0.001

71.93

3.299

1.220

0.00433738

0.01

85.26

3.299

1.215

0.04215278

0.1

87.37

3.299

1.203

0.12214476

0.3

89.56

3.299

1.203

0.20562464

0.5

88.67

3.299

1.203

0.33956308

0.8

85.91

3.300

1.202

0.43489106

1

83.75

Technical Document Image Preview



Bill of Materials

Reference

Qty

Part Number

Description

Package

Manufacturer

U1

1

RT5710AHGQW

DC-DC Converter

WDFN-6L 2x2

Richtek

C1, C7

2

NC

C-1206

C2, C6

2

GRM31CR71E106KA12L

10uF/25V/X7R/1206

C-1206

MURATA

C3

1

C1608X7R1H104K080AA

100nF/50V/X7R/0603

C-0603

TDK

C4, C5

1

NC

C-0603

L1

1

74404042015

1.5µH

4.0x4.0x1.8mm

WURTH ELEKTRONIK

R1, R2, R3

3

100k/0603

R-0603

R4

1

NC

R-0603



PCB Layout

Technical Document Image Preview

Top View (1st layer)

Technical Document Image Preview

PCB Layout—Inner Side (2nd Layer)

Technical Document Image Preview

PCB Layout—Inner Side (3rd Layer)

Technical Document Image Preview

Bottom View (4th Layer)

Title Last Update Share Download
Evaluation Board User Guide 2018/08/21
Bill of Materials 2018/08/21
Gerber File 2018/08/21
Schematic 2018/08/21
Part NumberFree SampleBuy From Authorized Distributor
EVB_RT5710AHGQW Not available Buy from Distributor
