Richtek

5A 2-4 Cell Buck-Boost Switching Battery Charger Evaluation Board

EVB_RT9490WSC

Share
ACTIVE

The Evaluation Board demonstrates that the RT9490WSC is designed for a highly-integrated 5A Buck-Boost switch mode battery charge management and system power path management device for 2-4 cell Li-Ion and Li-polymer batteries. The low impedance power path optimizes switch-mode operation efficiency, reduces battery charging time, and extends battery life during the discharging phase. The I2C serial interface with charging and system settings makes the device a truly flexible solution.

General Description

The Evaluation Board demonstrates that the RT9490WSC is designed for a highly-integrated 5A Buck-Boost switch mode battery charge management and system power path management device for 2-4 cell Li-Ion and Li-polymer batteries. The low impedance power path optimizes switch-mode operation efficiency, reduces battery charging time, and extends battery life during the discharging phase. The I2C serial interface with charging and system settings makes the device a truly flexible solution.



Performance Specification Summary

Summary of the RT9490WSC Evaluation Board performance specification is provided in Table 1. The ambient temperature is 25°C.


Table 1. RT9490WSC Evaluation Board Performance Specification Summary

Specification

Test Conditions

Min

Typ

Max

Unit

Supply Input Voltage Range

3.6

--

24

V

Maximum Input Current

--

--

3.3

A

Maximum OTG Current

OTG mode

--

--

3.32

A

Maximum Output Current

(SW2), ISYS

--

--

5

A

Maximum Battery Voltage

--

--

18.8

V

Maximum Charge Current

--

--

5

A

Maximum Discharge Current

--

--

10

A



Detailed Description of Hardware

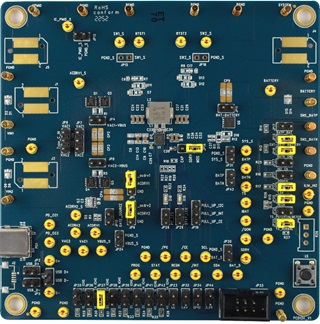

Headers Description and Placement

一張含有 文字, 電子產品, 電路 的圖片

自動產生的描述

一張含有 文字, 電子產品 的圖片

自動產生的描述

Carefully inspect all the components used in the EVB according to the following Bill of Materials table, and then make sure all the components are undamaged and correctly installed. If there is any missing or damaged component, which may occur during transportation, please contact our distributors or e-mail us at evb_service@richtek.com.


Test Points

The EVB is provided with the test points and pin names listed in the table below.

Test Point/

Pin Name

Function

VIN1

Input voltage for VAC1.

PGND

Ground.

VIN2

Input voltage for VAC2.

SYSTEM

Output voltage for sys.

BATTERY

Battery connection point.

SNS_BATP

External battery positive sense.

SNS_BATN

External battery negitive sense.

PD1

USB Type-C port.

JP7

Type-C USB BUS tied to VAC1 or VAC2 jumper.

JP9

Micro USB BUS tied to VAC1 or VAC2 jumper.

JP14

SDRV tied to ship FET or 1nF capacitor.

JP19

Pull up for I2C/INT/CE.

JP1

ACDRV1 pull-low jumper.

JP6

ACDRV2 pull-low jumper.

JP4

VAC1-VBUS short jumper.

JP8

VAC2-VBUS short jumper.

JP2

USB_D+ jumper.

JP5

USB_D- jumper.

JP11

BAT-BATTERY short jumper.

JP13

BATP tied to drain of ship FET jumper.

JP16

BATP tied to GND or external battery negitive sense jumper.

JP17

BATP tied to BAT pin jumper.

JP20

REGN for TS circuit pull high jumper.

JP21

Test resistence jumper with 500mA for ILIM_HZ function.

JP22

Test resistence jumper with 1.5A for ILIM_HZ function.

JP23

CE pull-low jumper.

JP25

Test resistence jumper with TS_NORMAL for JEITA.

JP26

Test resistence jumper for with TS_POTENTIOMETER JEITA.

JP27

Test resistence jumper for ILIM_HZ function

JP28

PG_LED enable jumper.

JP29

STAT_LED enable jumper.

JP35

This header is for part number RT9490S.

JP36

This header is for part number RT9490S.

JP37

PROG resistence jumper for default set 2S_1.5MHz_2A ICHG.

JP38

PROG resistence jumper for default set 2S_750KHz_2A ICHG.

JP39

PROG resistence jumper for default set 3S_1.5MHz_1A ICHG.

JP40

PROG resistence jumper for default set 3S_750KHz_1A ICHG.

JP41

PROG resistence jumper for default set 4S_1.5MHz_1A ICHG.

JP42

PROG resistence jumper for default set 4S_750KHz_1A ICHG.

CP2

VAC1-VBUS short pad.

CP3

VAC2-VBUS short pad.

CP9

BAT-BATTERY short pad.

S1

Button for exit ship mode or system reset.


Default Jumper Setting on EVB

Jumper

Description

JP1

Short ACDRV1 to _acdrv1.

JP6

Short ACDRV2 to _acdrv2.

JP13

Short BATP to BATTERY.

JP14

Short SDRV to MOS.

JP16

Short BATN to GND.

JP20

Short REGN to TS pull-up resistor.

JP25

Short TS to normal temperature resistor.

JP22

Short ILIM for 1.5A.

JP37

For 2 cell/1.5MHz setting.



Quick Start Procedure

Suggestion Required Equipments

  • RT9490WSC Evaluation Board
  • DC power supply capable of 24V, 3.3A
  • Battery simulator capable of 18.8V, 10A
  • Electronic load capable of 10A
  • Oscilloscope

Evaluation Board Jumper Setup

The Evaluation Board is fully assembled and tested. Follow the steps below to verify board operation. Do not turn on supplies until all connections are made. When measuring the output voltage ripple, care must be taken to avoid a long ground lead on the oscilloscope probe. Measure the output voltage ripple by touching the probe tip and ground ring directly across the last output capacitor.


1. Use jumpers on JP37 to JP42 to set battery cells and switching frequency for default charging profile.

Battery Cell (s)

Switching Frequency

Jumper No.

2S

1.5MHz

JP24

750kHz

JP25

3S

1.5MHz

JP26

750kHz

JP27

4S

1.5MHz

JP28

750kHz

JP29


2. Use jumpers on JP1 and JP6 to connect ACDRV1 and ACDRV2 to the gate driver output from IC. If the external AC-RBFETs are not needed, use jumpers on JP4 and JP8 to bypass them and JP1 and JP6 should be used to connect ACDRV1 and ACDRV2 to GND.

3. Use a jumper on JP14 with Mid-Right side to connect SDRV to the gate driver output from IC. If the external ship FET is not needed, use a jumper on JP11 to bypass it and use JP14 with Mid-Left side to connect SDRV to the capacitor.

4. Use a jumper on JP25 (TS_NORMAL) or JP26 (TS_POTENTIOMETER) for setting TS pin configuration and JP20 for connecting to REGN as pull-up voltage.

5. Use a jumper on JP21 (500mA) or JP22 (1.5A) for ILIM setting and JP27 for controlling HIZ_EN.

6. Use a jumper on JP16 to connect BATN to PGND.

7. Use a jumper on JP13 for connecting BATTERY to BATP when the external ship FET is adopted.

8. Use a jumper on JP17 for connecting BAT to BATP when the external ship FET is not adopted.

9. Use a jumper on JP9 for connecting Type_C_IN on VAC1 or VAC2.

Proper measurement equipment setup and follow the procedure below.

1. With power off, connect input power and ground to VIN1 or VIN2 and PGND respectively.

2. With load off, connect electronic load to SYSTEM and PGND respectively.

3. With power off, connect power and ground to BATTERY and PGND respectively. Turn on battery simulator, then the device is powered up.

4. Use I2C to set registers for charging function and proper protection level. Richtek also provides designers GUI software tool to read or write registers. The details are shown in the next chapter ” Evaluation GUI Software Tool Installation and Introduction”.

5. Turn on the input power supply to start charging. Make sure that the power supply voltage is under OVP level.

6. Check the output charging current using a current meter.

7. Once the proper charging current is established observe the output voltage regulation, ripple voltage, efficiency and other performance.

8. For testing SYS load, turns on the electronic load and adjusts SYS current.



Evaluation GUI Software Tool Installation and Introduction

The function settings of the RT9490 are not only hardware pins but also software register settings. The RT9490 register is set via I2C communication. To test evaluation board conveniently, Richtek provides GUI tool and users can use it to read and write the register. Follow the below steps to install the relative software tools.


1. Richtek Bridgeboard Utilities Installation

Get the Richtek Bridgeboard Utilities, user manual and purchase the bridge board from the website.

https://www.richtek.com/Design%20Support/Reference%20Design/RD0001-01?sc_lang=en

Please follow the user manual to install the Richtek Bridgeboard Utilities.

Technical Document Image Preview


2. Download the GUI

Get the RT9490 GUI from website.

https://www.richtek.com/Design%20Support/Reference%20Design/UG9490WSC?sc_lang=en

一張含有 文字, 螢幕擷取畫面, 數字, 字型 的圖片

自動產生的描述


3. The introduction of GUI interface is as below.

Technical Document Image Preview

A:

All registers can be read/written in these pages.

B:

You can select which byte you want to read/write in this column.

C:

The selected register will continue to be read after click the scan button.

D:

Write: The selected register will be written to the device after click the write button.

Read: The selected register will be updated after click the read button.

Technical Document Image Preview

E:

This page is for charging behavior setting.

F:

This type of dropdown menu allows you to select the setting you need.

G:

You can scroll down/up to select the register setting.

H:

This type of menu allows you to select the bit setting you need. A solid fill indicates your selection.

Technical Document Image Preview

I:

These lamp icon are STATUS type of register.



Test Procedure

Hardware Initial Settings

1. Follow the section “Evaluation Board Jumper Setup” to set the board jumper.

2. Use a battery simulator or a real battery to power up the RT9490 at the BATTERY pin. The voltage should be within the application range. For example, in 2-cell application, users can initially provide 8V to the BATTERY pin.

Technical Document Image Preview


GUI Setup

1. Follow the section” Evaluation GUI Software Tool Installation” to Install the GUI tool.

2. Connect Richtek Wrenboard to evaluation board through JP33 SCL/SDA/PGND pin.

3. Connect Richtek Wrenboard to the computer.

4. After providing power to the Evaluation Board, run the RT9490_RT9490S_GUI_V4.exe.

一張含有 文字, 螢幕擷取畫面, 字型, 數字 的圖片

自動產生的描述


5. If GUI connection is successful, the slave address ID will show 0x53.

Technical Document Image Preview

Register Initial Setting

1. For board evaluation, disable watchdog initially if don’t want to verify watchdog function.

一張含有 文字, 螢幕擷取畫面, 字型, 軟體 的圖片

自動產生的描述

2. Check whether BATTERY_CELL setting is the same as PROG pin setting. This register can also be changed after powered up.

Technical Document Image Preview

3. Set VSYSMIN for Buck-Boost sys pin minimum regulation level. Set it as minimum system voltage.

4. Set VBAT_REG for battery full charged level.

5. Set ICHG_CTRL for fast charge current level.

6. Set VMIVR for input voltage limitation level. Set it lower than test input voltage.

7. Set IAICR for input current limitation level. Set it lower than test input source current limit.

Technical Document Image Preview

8. Set the IEOC for charging termination level.

Technical Document Image Preview

9. Check whether VAC_OVP level is large enough. It should bigger than VBUS input voltage.

一張含有 螢幕擷取畫面, 文字, 軟體, 行 的圖片

自動產生的描述

10. The charger input current limit is decided by the minimum value between AICR and ILIM. If do not want to verify the ILIM_HZ function, disabled ILIM_HZ function.

Technical Document Image Preview


Charger Function Test

1. After finishing register initial setting, give VAC1 or VAC2 pin input power to start charger. For example, give it 15V.

Technical Document Image Preview

2. Check whether it triggers AICR_STAT, MIVR_STAT, or other protections.

Technical Document Image Preview

3. If it triggers AICR_STAT, it means that the input current is near limitation level. Increase input voltage or reduce ICHG_CTRL setting to leave AICR_STAT.

4. If it triggers MIVR_STAT, it means that the input power is not enough and input source voltage drops. Increase input power ability or reduce ICHG_CTRL setting to leave MIVR_STAT.

5. Check the CHG_STAT. In CC mode, the charging current will be regulated as register ICHG_CTRL if it doesn’t have AICR_STAT and MIVR_STAT.

Technical Document Image Preview

6. Measure the BAT pin output current to verify the fast charge current.

7. Gradully increase battery simulator voltage to simulate battery charging.

8. Measure the charging current and the BATP pin voltage as the battery voltage increases. Once the charging current starts to fall down, verify that the voltage remains at the VBAT_REG level (IR drop + VBAT = VBAT_REG level).

9. Check that CHG_STAT is into CV mode.

一張含有 文字, 螢幕擷取畫面, 行, 字型 的圖片

自動產生的描述

10. Continue increasing the battery voltage. Check that the BAT charging current is gradually down in CV mode.

11. After BAT charging current is below IEOC level, the RT9490 will stop charging.

12. CHG_STAT will show Charge_done at this full-charged stage.

一張含有 文字, 螢幕擷取畫面, 字型, 行 的圖片

自動產生的描述

13. If EN_TE is disabled at initial setting, the IEOC function will not work at this stage. The RT9490 will not stop charging and will continue charging until the current decreases to 0A.

Technical Document Image Preview

14. To verify the recharge function, load the SYS pin to discharge the battery or reduce the voltage of the battery simulator.

15. The recharge level is determined by the VRECHG register.

Technical Document Image Preview

16. Afrer battery voltage is below (VBAT_REG-VRECHG), the RT9490 will start to charge again. For example, VBAT_REG is 8.4V, VRECHG is 200mV and the recharge level will be 8.2V.

Technical Document Image Preview

17. Plug out the VAC input power. RT9490 will stop charging.


OTG Function Test

1. Finish register initial setting as section” Register initial setting” .

2. Make sure the battery voltage is above VOTG_LBP (typ. 2.7V). For example, provide it 8V.

3. Set the OTG voltage level.

Technical Document Image Preview

4. Enable EN_OTG. The RT9490 will start to output voltage at the VBUS pin.

Technical Document Image Preview

5. On the RT9490 evaluation board, there are mounted AC-RBFETs already. If AC-RBFET is used by jumper setting(see the details in the section” Evaluation Board Jumper Setup”), OTG only starts after the choosed AC-RBFET is turned on.

For example, if VAC1 RBFET is used, EN_ACDRV1 should be enabled. The RT9490 starts to output OTG voltage after register EN_ACDRV1 is set to 1.

一張含有 文字, 螢幕擷取畫面, 字型, 行 的圖片

自動產生的描述

6. Measure the VBUS pin and VAC pin to verify the OTG setting level.

7. After OTG starts, OTG voltage is still able to be set.

Technical Document Image Preview


Measure Results Reference

Power Up with VAC Pluged in

Charging in Buck Mode

Technical Document Image Preview

Technical Document Image Preview

Charging in Boost Mode

Charging in Buck-Boost Mode

Technical Document Image Preview

Technical Document Image Preview

Charging Enabled by CE Pin

Charging Disabled by CE Pin

Technical Document Image Preview

Technical Document Image Preview

1s Battery Charger Efficiency

2s Battery Charger Efficiency

Technical Document Image Preview

Technical Document Image Preview

3s Battery Charger Efficiency

4s Battery Charger Efficiency

Technical Document Image Preview

Technical Document Image Preview

Thermal Image at VIN = 15V, VBAT = 8V, ICHG = 2A

Technical Document Image Preview

Note: When measuring the input or output voltage ripple, care must be taken to avoid a long ground lead on the oscilloscope probe. Measure the output voltage ripple by touching the probe tip directly across the output capacitor.



Typical Applications

EVB Schematic Diagram

Technical Document Image Preview



Bill of Materials

fSW = 1.5MHz

Reference

Count

Part Number

Value

Description

Package

Manufacturer

U1

1

RT9490WSC

--

Switching Charger

WL-CSP-56B 2.93x3.46 (BSC)

RICHTEK

C7, C18

2

GRM033R61C473KE84

47nF

Capacitor, Ceramic, 16V, X5R

C-0201

MURATA

C10, C13, C22, C23, C24

5

GRM188R6YA106MA73

10µF

Capacitor, Ceramic, 35V, X5R

C-0603

MURATA

C11, C25, C30

3

0402B104K500CT

0.1µF

Capacitor, Ceramic, 50V, X7R

C-0402

WALSIN

C26

1

GRM155R60J475ME47D

4.7µF

Capacitor, Ceramic, 6.3V, X5R

C-0402

MURATA

C27, C29, C31, C34, C36

5

GRM188R61E106MA73

10µF

Capacitor, Ceramic, 25V, X5R

C-0603

MURATA

C39

1

0402B102K500CT

1nF

Capacitor, Ceramic, 50V, X7R

C-0402

WALSIN

D18, D19

2

LNL-190SUG

--

LED_GREEN

LED-0603

LighTop

L2

1

PIMB063T-1R0MS-68

1µH

20%/6.7mΩ

L-7-4X6-8

CYNTEC

PD1

1

121U-3CST-09CR

--

USB TYPE-C 3.1

9.87x9.75mm

JEM

Q1, Q2, Q4, Q5

4

AONR36366

--

AONR36366

DFN 3x3 EP

ALPHA & OMEGA SEMICONDUCTOR

Q6

1

AON7528

--

AON7528

DFN 3.3x3.3 EP

ALPHA & OMEGA SEMICONDUCTOR

R12

1

WR06X000 PTL

0

Resistor, Chip, 1/10W, 1%

R-0603

WALSIN

R13, R14

2

WR06X1000FTL

100

Resistor, Chip, 1/10W, 1%

R-0603

WALSIN

R15

1

CR-02FL6---5K1

5.1k

Resistor, Chip, 1/16W, 1%

R-0402

VIKING

R16

1

RTT032553FTP

255k

Resistor, Chip, 1/10W, 1%

R-0603

RALEC

R17

1

WR06X1273FTL

127k

Resistor, Chip, 1/10W, 1%

R-0603

WALSIN

R18, R21, R22, R27

4

WR04X1002FTL

10k

Resistor, Chip, 1/10W, 1%

R-0402

WALSIN

R23, R24

2

CR-02FL6---4K7

4.7k

Resistor, Chip, 1/16W, 1%

R-0402

VIKING

R25

1

WR06X1003FTL

100k

Resistor, Chip, 1/10W, 1%

R-0603

WALSIN

R26

1

WR06X3012FTL

30.1k

Resistor, Chip, 1/10W, 1%

R-0603

WALSIN

R29

1

RTT033001FTP

3k

Resistor, Chip, 1/10W, 1%

R-0603

RALEC

R30

1

WR06X4701FTL

4.7k

Resistor, Chip, 1/10W, 1%

R-0603

WALSIN

R31

1

RC0603FR-076K04L

6.04k

Resistor

R-0603

YAGEO

R32

1

WR06X8201FTL

8.2k

Resistor, Chip, 1/10W, 1%

R-0603

WALSIN

R33

1

WR06X1052FTL

10.5k

Resistor, Chip, 1/10W, 1%

R-0603

WALSIN

R34

1

WR06X1372FTL

13.7k

Resistor, Chip, 1/10W, 1%

R-0603

WALSIN

R35

1

WR06X1742FTL

17.4k

Resistor, Chip, 1/10W, 1%

R-0603

WALSIN

R36

1

WR06X2702FTL

27k

Resistor, Chip, 1/10W, 1%

R-0603

WALSIN

S1

1

HTS6601H

--

SW-TACT-SWITCH

TACT-BTN

High-Tronics



Evaluation Board Layout

Figure 1 to Figure 4 are RT9490WSC Evaluation Board layout. This board size is 101.6mm x 101.6mm and is constructed on four-layer PCB, outer layers with 1 oz. Cu and inner layers with 1 oz. Cu.

一張含有 文字, 電子產品, 收據 的圖片

自動產生的描述

Figure 1. Top View (1st layer)


一張含有 圖表 的圖片

自動產生的描述

Figure 2. PCB Layout—Inner Side (2nd Layer)


一張含有 地圖 的圖片

自動產生的描述

Figure 3. PCB Layout—Inner Side (3rd Layer)


一張含有 文字, 螢幕擷取畫面, 地圖, 圖表 的圖片

自動產生的描述

Figure 4. Bottom View (4th Layer)

Title Last Update Share Download
Evaluation Board User Guide 2024/04/26
Bill of Materials 2024/04/26
Schematic 2024/04/26
Gerber File 2024/04/26
RT9490 GUI Control Panel 2024/04/26
RT9490
RT9490

RT9490 是可以 5A 电流对 2-4 节串联锂离子/聚合物电池进行充电管理和系统电源路径管理的 Buck-Boost 架构充电 IC,它采用低阻抗的功率开关进行开关模式的工作,效率高,节省充电时间,延长电池放电时间,通过 I2C 接口即可对其进行充电和系统相关的设定操作,是应用灵活的解决方案。
建议的接面温度范围为-40°C至130°C,而环境温度范围则为-40°C至85°C。

Part NumberDistributorStockBuy From Authorized Distributor
EVB_RT9490WSC Digikey 2 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
IC
Part NumberPackage TypePackage Qty.Free SampleDistributorStockBuy From Authorized Distributor
RT9490WSCWL-CSP2.93x3.46-56(BSC)1,500 Request Digikey 967 Buy
Mouser Lead-Time: 14 weeks Not Available
WPG Lead-Time: 14 weeks Not Available
TOP
