The RT9081D is a high performance positive voltage regulator with separated bias voltage (VBIAS), and is designed for applications requiring low input voltage and ultra low dropout voltage. The output current is up to 500mA. The feature of ultra low dropout voltage is ideal for applications where output voltage is very close to input voltage. The input voltage can be as low as 0.8V and the output voltage is adjustable by an external resistive divider. The RT9081D features very low quiescent current consumption for portable applications. The device is available in the ZADFN-6L 1.2x1.2 package.

应用

  • Battery Powered Systems
  • Portable Electronic Device
  • Digital Set Top Boxes
主要规格
RT9081D
Status Active
Vin (min) (V) 0.8
Vin (max) (V) 5.5
Vout (min) (V) 0.8
Vout (max) (V) 3.6
Output Adj. Method Fixed;Resistor
Accuracy (+/- %) 1.5
Iout (max) (mA) 500
Iq (typ) (uA) 80
Vdropout @ rated current (typ) (mV) 140 @ 0.5A;37 @ 0.15A
Bias Rail Yes
Cout Type Ceramic
Charge Pump No
Features Enable Input;Low Dropout
Package Type ZADFN1.2x1.2-6
Outline Dimension, Footprint, Drawing Download
关键特性
  • Input Voltage Range : 0.8V to 5.5V
  • Bias Voltage Range : 2.4V to 5.5V

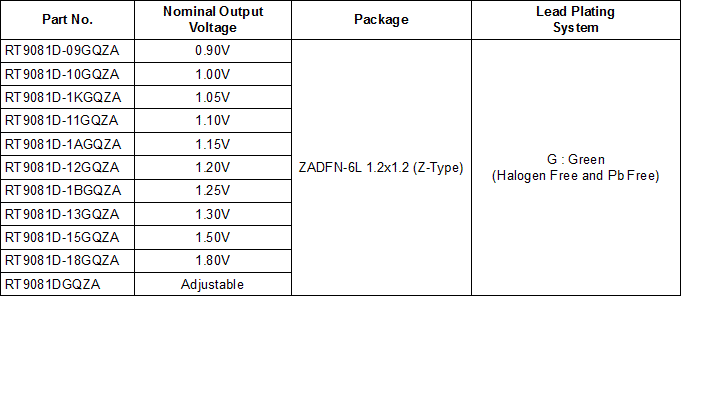

  • Output Voltage Fixed and Adjustable Versions
    - 0.9V to 1.8V (Fixed)
    - 0.8V to 3.6V (Adjustable)
  • Accurate Output Voltage Accuracy (1.5%) Over Line,
    Load @ 25°C
  • Ultra Low Dropout Voltage : 140mV at 500mA
  • Low Bias Input Current
    - 80μA in Operating Mode
    - 0.5μA in Shutdown Mode
  • Enable Control
  • Output Active Discharge Function
  • RoHS Compliant and Halogen Free
