RT9005A/RT9005B

DDR VDDQ and Termination Voltage Regulator

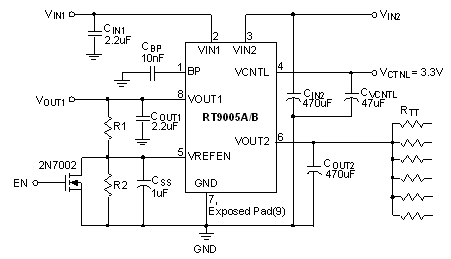

The RT9005A/B is a dual-output linear regulator for DDR-SDRAM VDDQ supply and termination voltage VTT supply.
The Regulator is capable of actively sinking or sourcing up to 2A. The output termination voltage can be tightly regulated to track 1/2 VDDQ by two external voltage divider resistors.

应用

Desktop PCs, Notebooks, and Workstations
Graphics Card Memory Termination
Set Top Boxes, Digital TVs, Printers
Embedded Systems
Active Termination Buses
DDR-I and DDR-II Memory Systems

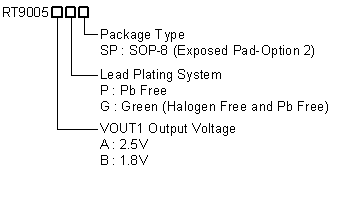

主要规格
	RT9005A	RT9005B
Status	Active	Active
Memory Supported	DDRI;DDRII	DDRI;DDRII
Vin (min) (V)	1.5	1.5
Vin (max) (V)	3.6	3.6
VTT Output Tolerance (max) (+/- mV)	20	20
Isource/Isink (max) (A)	2	2
Standby Current (typ) (mA)	0.05	0.05
Current Limit (typ) (A)	2.8	2.8
Features	OCP	OCP
Package Type	PSOP-8	PSOP-8

关键特性

Ideal for DDR-I and DDR-II VDDQ, VTT Applications
Integrated Power MOSFETs
Generates Termination Voltage for SSTL_2, SSTL _18, HSTL, SCSI-2 and SCSI-3 Interfaces
High Accuracy Output Voltage at Full-Load
VOUT2 Sink and Source 2A Continuous Current
VOUT2 Adjustment by Two External Resistors
Shutdown for Suspend to RAM (STR) Functionality with High-Impedance Output
Current Limiting Protection
On-Chip Thermal Protection
Available in SOP-8 (Exposed Pad) Packages
RoHS Compliant and 100% Lead (Pb)-Free

Datasheet
Title	Last Update	Download
DDR VDDQ and Termination Voltage Regulator	2007/07/17
