The RT9503 is a fully integrated low cost single-cell Li-Ion battery charger IC ideal for portable applications. The RT9503 is capable of being powered up from AC adapter and the USB (Universal Serial Bus) port inputs. The RT9503 can automatically detect and select the AC adapter and the USB port as the power source for the charger. The RT9503 enters sleep mode when both supplies are removed.
The RT9503 optimizes the charging task by using a control algorithm including preconditioning mode, fast charge mode and constant voltage mode. The charging task is terminated as the charge current drops below the preset threshold. The USB charge current can be selected from preset ratings100mA and 500mA, while the AC adapter charge current can be programmed up to 1A with an external resister. The internal thermal feedback circuitry regulates the die temperature to optimize the charge rate for all ambient temperatures.
The RT9503 features 18V and 7V maximum rating voltages for AC adapter and USB port inputs respectively. The other features are external programmed safety timer, under voltage protection, over voltage protection for AC adapter supply, battery temperature monitoring, power supply status indicators and charge status indicator.


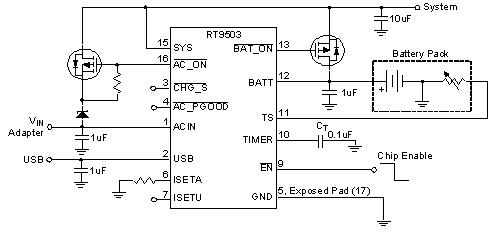

  • Digital Cameras
  • Cellular Phones
  • PDAs and Smart Phones and MP3
  • Portable Instruments
Key Spec.
Status Active
Vin (min) (V) 4.5
Vin (max) (V) 12
Battery Charge Voltage (max) (V) 4.2
Battery Charge Current (max) (A) 1
Status Indicator Yes
Charger Type Linear
Input Source AC Adapter;USB
Features Enable Input;Internal Compensation;OVP;Power Good;UVP
Package Type WQFN3x3-16
Built-in Power MOSFETs Yes
  • Automatic Input Supplies Selection
  • 18V Maximum Rating for AC Adapter
  • Integrated Selectable 100mA and 500mA USB Charge Current
  • Internal Integrated Power FETs
  • AC Adapter Power Good Status Indicator
  • Charge Status Indicator
  • External Capacitor Programmable Safety Timer
  • Under Voltage Protection
  • Over Voltage Protection
  • Automatic Recharge Feature
  • Battery Temperature Monitoring
  • Small 16-Lead WQFN Package
  • Thermal Feedback Optimizing Charge Rate
  • Power Path Controller
  • RoHS Compliant and 100% Lead (Pb)-Free
