The RT6260C is an advanced constant on-time (ACOT®) mode synchronous buck converter. The main control loop of the RT6260C uses an advanced constant on-time (ACOT®) mode control which provides a very fast transient response. The RT6260C operates from 5.1V to 23V input voltage.

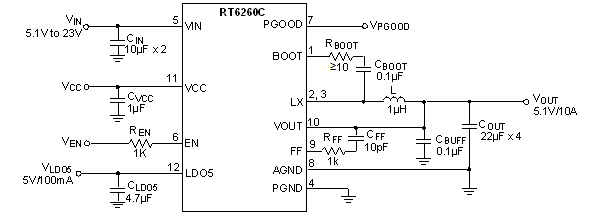

Applications

  • Industrial and Commercial Low Power Systems
  • Computer Peripherals
  • LCD Monitors and TVs
  • Green Electronics/Appliances
  • Point of Load Regulation for High-Performance DSPs, FPGAs, and ASICs
Key Spec.
RT6260C
Status Active
Vin (min) (V) 5.1
Vin (max) (V) 23
Number of Outputs 1
Vout (min) (V) 5.049
Vout (max) (V) 5.151
Output Adj. Method Fixed
Iout (max) (A) 10
Current Limit (typ) (A) 14
Freq (typ) (kHz) 600
Ext Sync No
Ron_HS (typ) (mOhm) 20
Ron_LS (typ) (mOhm) 10
Iq (typ) (mA) 0.1
Features ACOT Control;Built-in Bootstrap Switch;Cycle-by-Cycle Current Limit;Diode Emulation Mode;Enable Input;Fast Transient Response;OCP;OTP;OVP;PSM;Power Good;Stable with Ceramic Capacitor;UVP;Ultrasonic Mode Control
Package Type UQFN3x3-12H(FC)
Features
  • 5.1V to 23V Input Voltage Range 10A Output Current
  • ACOTTM Mode Performs Fast Transient Response
  • ACOTTM Architecture to Enable All MLCC Output Capacitor Usage
  • Fixed 600kHz Switching Frequency
  • High Efficient Internal Power MOSFET Switch-
    20mΩ (High-Side) and 10mΩ (Low-Side)
  • Fixed 5V LDO Output Supply 100mA
  • Pre-biased Soft-Start
  • Cycle-by-Cycle Over-Current Protection
  • Input Under-Voltage Lockout
  • Thermal Shutdown Protection
  • Output Over-/Under-Voltage Protection
  • Ultrasonic Mode (USM)
