RT8060A

1.5MHz, 1A High Efficiency Step-Down Converter

The RT8060A is a current mode, high efficiency PWM step-down DC/DC converter that can support a wide input voltage range from 2.7V to 5.5V, while delivering up to 1A output current. The current mode operation provides fast transient response and eases loop stabilization.

A 1.5MHz frequency operation allows the use of a smaller inductor to meet the space and height limitations handheld applications.

The RT8060A is available in a SOT-23-5 package.

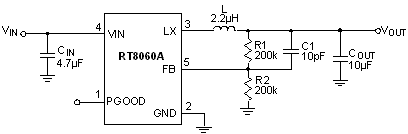

Applications

Storage Device : HDD/ODD
Wireless and DSL Modems

Key Spec.
	RT8060A
Status	Active
Vin (min) (V)	2.7
Vin (max) (V)	5.5
Number of Outputs	1
Vout (min) (V)	0.6
Output Adj. Method	Resistor
Iout (max) (A)	1
Current Limit (typ) (A)	1.5
Freq (typ) (kHz)	1500
Ext Sync	No
Ron_HS (typ) (mOhm)	250
Ron_LS (typ) (mOhm)	200
Iq (typ) (mA)	0.078
Features	100% Duty Cycle;Current Mode Control;Force PWM;Internal Compensation;OCP;OTP;Power Good;Stable with Ceramic Capacitor
Package Type	SOT-25

Features

2.7V to 5.5V Wide Input Voltage Range
Adjustable Output Voltage
1A Output Current
Up to 95% Efficiency
1.5MHz Fixed Frequency PWM Operation
Power Good Indicator
Over Current Protection
Internal Sort-Start
No Schottky Diode Required
Internal Compensation
RoHS Compliant and Halogen Free
