The RT9081A is a high performance positive voltage regulator with separated bias voltage (VBIAS), designed for applications requiring low input voltage and ultra low dropout voltage, output current up to 500mA. The feature of ultra low dropout voltage is ideal for applications where output voltage is very close to input voltage. The input voltage can be as low as 0.8V and the output voltage is adjustable by an external resistive divider. The RT9081A features very low quiescent current consumption for portable applications. The device is available in the ZADFN-6L 1.2x1.2 package.

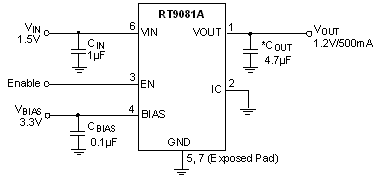

Applications

  • Battery Powered Systems
  • Portable Electronic Device
  • Digital Set Top Boxes
Key Spec.
RT9081A
Status Active
Vin (min) (V) 0.8
Vin (max) (V) 5.5
Vout (min) (V) 0.8
Vout (max) (V) 3.6
Output Adj. Method Fixed;Resistor
Accuracy (+/- %) 1.5
Iout (max) (mA) 500
Iq (typ) (uA) 80
Vdropout @ rated current (typ) (mV) 140 @ 0.5A
Bias Rail Yes
Cout Type Ceramic
Charge Pump No
Features Enable Input;Low Dropout;OCP;Output Discharge;Stable with Ceramic Capacitor
Package Type ZADFN1.2x1.2-6
Features
  • Input Voltage Range : 0.8V to 5.5V
  • Bias Voltage Range : 2.4V to 5.5V
  • Output Voltage Fixed and Adjustable Versions
    ► 0.9V to 1.8V (Fixed)
    ► 0.8V to 3.6V (Adjustable)
  • Accurate Output Voltage Accuracy (1.5%) Over Line,
    Load @ 25°C
  • Ultra Low Dropout Voltage : 140mV at 500mA
  • Low Bias Input Current
    ► 80μA in Operating Mode
    ► 0.5μA in Shutdown Mode
  • Enable Control
  • Output Active Discharge Function
  • RoHS Compliant and Halogen Free
Datasheet
TitleLast UpdateDownload
500mA, 5.5V, Ultra Low Dropout Linear Regulator2016/10/21

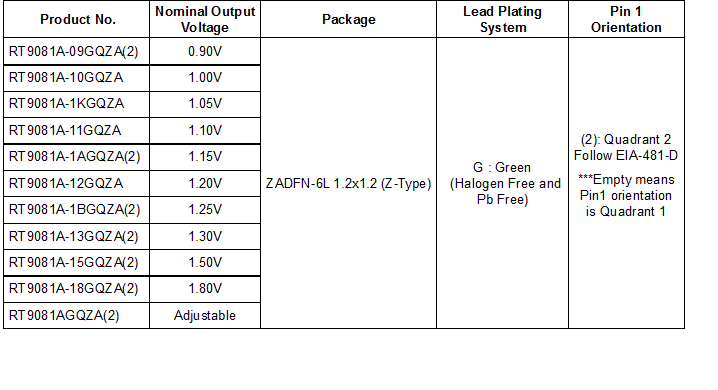

Part NumberPackage TypePackage Qty.Free SampleBuy From Authorized Distributor
RT9081A-09GQZA(2)ZADFN1.2x1.2-62500 Request Buy from Distributor
RT9081A-10GQZAZADFN1.2x1.2-62500 Request Buy from Distributor
RT9081A-11GQZAZADFN1.2x1.2-62500 Request Buy from Distributor
RT9081A-12GQZAZADFN1.2x1.2-62500 Request Buy from Distributor
RT9081A-13GQZA(2)ZADFN1.2x1.2-62500 Request Buy from Distributor
RT9081A-15GQZA(2)ZADFN1.2x1.2-62500 Request Buy from Distributor
RT9081A-1AGQZA(2)ZADFN1.2x1.2-62500 Request Buy from Distributor
RT9081A-1BGQZA(2)ZADFN1.2x1.2-62500 Request Buy from Distributor
RT9081A-1KGQZAZADFN1.2x1.2-62500 Request Buy from Distributor
RT9081AGQZA(2)ZADFN1.2x1.2-62500 Request Buy from Distributor
Please confirm with our distributor or sales representative for actual stock status.
