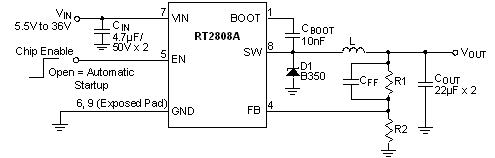

The RT2808A is a current mode asynchronous step-down converter that achieves excellent load and line regulation. Over a wide input voltage range from 5.5V to 36V and supports output current up to 3A. The Current mode operation provides fast transient response and eases loop stabilization.An adjustable soft-start reduces the stress on the input source at startup. In shutdown mode, the regulator draws only 25μA of supply current. The RT2808A requires a minimum number of readily available external components, providing a compact solution. The RT2808A provides protection functions inducing input under voltage lockout, cycle-by-cycle current limit, short circuit protection and thermal shutdown protection. The RT2808A is available in the SOP-8 (Exposed Pad) package.
3A Output Current
Wide Operating Input Range 5.5V to 36V
Adjustable Output Voltage from 1.222V to 26V
High Efficiency up to 90%
Internal Compensation Minimizes External Parts Count
Internal Soft-Start
110mΩ Internal Power MOSFET Switch
25μA Shutdown Mode
Fixed 500kHz Frequency
Thermal Shutdown
Cycle-by-Cycle Current Limit
Available In an SOP-8 (Exposed Pad) Package
RoHS Compliant and Halogen Free
