3.5A, 18V, 500kHz ACOT® Synchronous Step-Down Converter

RT7295D

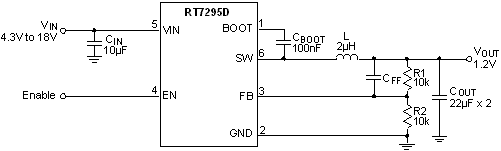

The RT7295D is a synchronous step-down converter with Advanced Constant On-Time (ACOT^TM) mode control. The ACOT^TM provides a very fast transient response with few external components. The low impedance internal MOSFET supports high efficiency operation with wide input voltage range from 4.3V to 18V. The proprietary circuit of the RT7295D enables to support all ceramic capacitors. The output voltage can be adjusted between 0.6V and 8V.

Applications

Industrial and Commercial Low Power Systems
Computer Peripherals
LCD Monitors and TVs
Green Electronics/Appliances
Point of Load Regulation for High-Performance DSPs,
FPGAs, and ASICs

Key Spec.

	RT7295D
Status	Active
Vin (min) (V)	4.3
Vin (max) (V)	18
Number of Outputs	1
Vout (min) (V)	0.6
Vout (max) (V)	8
Output Adj. Method	Resistor
Iout (max) (A)	3.5
Current Limit (typ) (A)	4.4
Freq (typ) (kHz)	500
Ext Sync	No
Ron_HS (typ) (mOhm)	90
Ron_LS (typ) (mOhm)	45
Iq (typ) (mA)	0.5
Features	ACOT Control;Cycle-by-Cycle Current Limit;Enable Input;Fast Transient Response;Force PWM;OCP;OTP;Stable with Ceramic Capacitor
Package Type	TSOT-26(FC)
