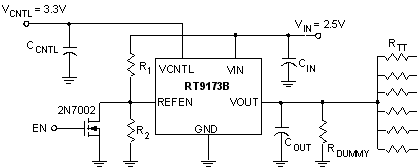

The RT9173B regulator is designed to convert voltage supplies ranging from 1.7V to 6V into a desired output voltage of which adjusted by two external voltage divider resistors. The regulator is capable of sourcing or sinking up to 2A of current while regulating an output voltage to within 40mV.The RT9173B, used in conjunction with series termination resistors, provides an excellent voltage source for active termination schemes of high speed transmission lines as those seen in high speed memory buses and distributed backplane designs. The voltage output of the regulator can be used as a termination voltage for DDR SDRAM.Current limits in both sourcing and sinking mode, plus on-chip thermal shutdown make the circuit tolerant of the output fault conditions.The RT9173B are available in the popular 5-lead TO-252 and fused SOP-8 (the multiple VCNTL pins on the SOP-8 package are internally connected but lowest thermal resistance) surface mount packages.
Support Both DDR I (1.25VTT) and DDR II (0.9VTT) Requirements
SOP-8 and TO-252-5 Packages
Capable of Sourcing and Sinking Current
Current-limiting Protection
Thermal Protection
Integrated Power MOSFETs
Generates Termination Voltages for SSTL-2
High Accuracy Output Voltage at Full-Load
Adjustable VOUT by External Resistors
Minimum External Components
Shutdown for Standby or Suspend Mode Operation with High-impedance Output
RoHS Compliant and 100% Lead (Pb)-Free
