The RT9524 is a fully integrated single cell Li-ion battery charger IC ideal for portable applications. The RT9524 optimizes the charging task by using a control algorithm including pre-charge mode, fast charge mode and constant voltage mode. the input voltage range of the VIN pin can be as high as 28V. When the input voltage exceeds the OVP threshold, it will turn off the charging MOSFET to avoid overheating of the chip.
In RT9524, the maximum charging current can be programmed with an external resistor. For USB application, the user can set the current to 100mA/500mA through the EN/SET pin. For the factory mode, the RT9524 can allow 4.2V/2.3A power pass through to support system operation. It also provides a 50mA LDO to support the power of peripheral circuit. The internal thermal feedback circuit regulates the die temperature to optimize the charge rate for all ambient temperatures. The RT9524 provides protection functions such as under voltage protection, over voltage protection for VIN supply and thermal protection for battery temperature.
The RT9524 is available in a WDFN-10L 3x2 package to achieve optimized solution for PCB space and thermal considerations.


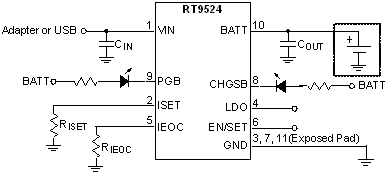

  • Cellular Phones
  • Digital Cameras
  • PDAs and Smart Phones
  • Protable Instruments
Key Spec.
Status NRND
Recommended Alternative  RT9532
Vin (min) (V) 4.3
Vin (max) (V) 5.5
Battery Charge Voltage (max) (V) 4.2
Battery Charge Current (max) (A) 1
Status Indicator Yes
Charger Type Linear
Input Source AC Adapter
Features Adjustable Current Limit;Enable Input;Internal Compensation;Low Dropout;OVP;Power Good;UVP
Package Type WDFN3x2-10
Built-in Power MOSFETs Yes
  • 28V Maximum Rating for DC Adapter
  • Internal Integrated Power MOSFETs
  • Support 4.2V/2.3A Factory Mode
  • 50mA Low Dropout Voltage Regulator
  • Status Pin Indicator
  • Programmed Charging Current
  • Under Voltage Lockout
  • Over Voltage Protection
  • Thermal Feedback Optimized Charge Rate
  • RoHS Compliant and Halogen Free
TitleLast UpdateDownload
Linear Single Cell Li-Ion Battery Charger IC for Portable Applications2010/03/01
Technical Documents
TitleItem TypeLast UpdateDownload
Richtek Product Selection Guide [Jan., 2024] Selection Guide2024/01/18
Part NumberPackage TypePackage Qty.Free SampleBuy From Authorized Distributor
RT9524GQWWDFN3x2-101500 Request Buy from Distributor
