The RT7800 is a USB Power Delivery (USB PD) controller with highly integrated functions for notebook, tablet, mobile phone or any other devices with USB Type-C (USB-C) receptacle. It is designed to embed ARM CortexTM-M0 MCU so as to facilitate various functions of communication protocol, protections and customized requirements. The IC allows designer to define a USB-C port as a Provider, Consumer or a Dual Role Port by program setup.

Applications

  • Notebook PC, Tablet PC, Smart Phone
  • Desktop PC, LCD Monitor, TV, Docking Station
  • Car Charger, Power Bank
  • Portable Hard Disk, Dongle, Hubs
Key Spec.
RT7800
Status Active
Policy Manager Integrated
Alternate Mode Yes
PD Version PD2.0
MCU Integrated Yes
Power Role DRP
Data Role Dual Role
External Power Path Control N-MOSFET Driver
Internal Power Path VCONN 5V 200mA
Iq (Typ) (μA) 108
Realtime VBUS Monitoring Yes
Dead Battery Support Yes
CC Pins 2
VBUS Discharge By BLD
Features Controller for DCDC Power;I2C;OCP;SCP;VBUS OVP;VBUS UVP

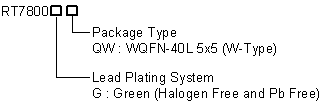

Package Type WQFN5x5-40
Features
  • AnyPowerTM = AnyVoltTM + AnyCurrentTM
  • AnyVoltTM (50mV/step) Output Voltage Adjustment for USB Cable Bus Power (VBUS)
  • Support Internet Online Firmware Updates
  • AnyCurrentTM OCP for USB-C VBUS Output
  • Cable Voltage Drop Compensation (CDC) for VBUS
  • Support Provider, Consumer and Dual Role
  • High Integration :
    ► ARM M0 MCU for PD Protocol, Policy Engine and Device Policy Manager; Two I2C Interfaces
    ► Built-in Rp, Rd and BMC Physical Layer
    ► GPIOs for MUX Control and Customized Functions
    ► Automatic IC Bias Input Selection
    ► Standard Compliance Quick Discharge for VBUS
    ► Support Dead Battery Function
    ► Support USB Plug Power (VCONN)
    ► 4 Built-in Charge Pump NMOS Gate Drivers
  • PDsafeTM :
    ► OVP Detections at VBUS and VX Pins
    ► UVP Detection at VBUS Pin
    ► Current Limit for VCONN1/2 Output
    ► Maximum Rating, 22V for CC1 and CC2 Pins
Datasheet
TitleLast UpdateDownload
AnyPowerTM and PDsafeTM USB Type-C PD Controller2017/05/02
Please confirm with our distributor or sales representative for actual stock status.
